Body Harness Routing - Left Engine Compartment 1 of 2

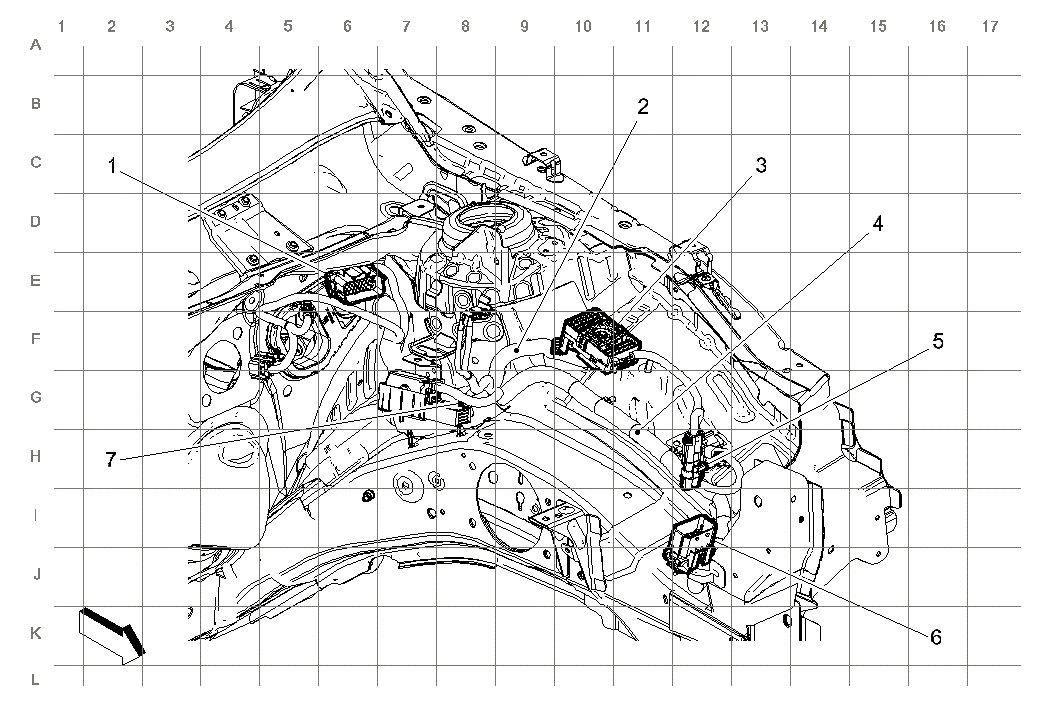

Fig 1: Left Engine Compartment Body Harness Routing 1 of 2

Courtesy of GENERAL MOTORS COMPANY

Items
1:  X150 X150 Forward Lamp Harness to Body Harness
2:  J123
3:  X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5X50A Fuse Block - Underhood X6
4:  J110
5:  X114 (NU6) X114 Engine Harness to Body Harness (NU6)
6:  X115 X115 Engine Harness to Body Harness (LKW)X115 Engine Harness to Body Harness (LTG)X115 Engine Harness to Body Harness (LUK)
7:  J136
