X115 Engine Harness to Body Harness (LKW)

GM2220548
GM2339640
Connector Part Information
  • Harness Type: Engine Harness
  • OEM connector: 13603185
  • Service connector: 13576549
  • Description: 40-Way F 1.5/2.8 Series, Sealed (BK)
 Connector Part Information
  • Harness Type: Body Harness
  • OEM connector: 13603208
  • Service connector: 13576551
  • Description: 40-Way M 2.8 ATS DSQ 1.5 Series, Sealed (BK)

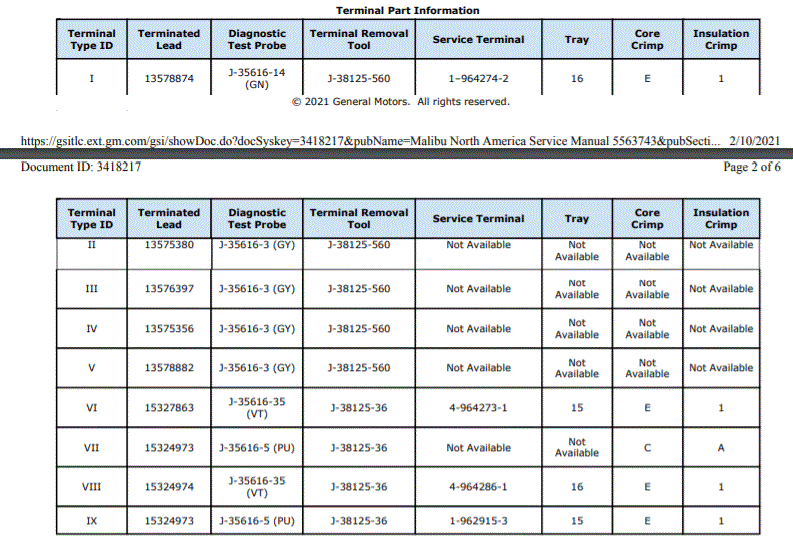

G00597692

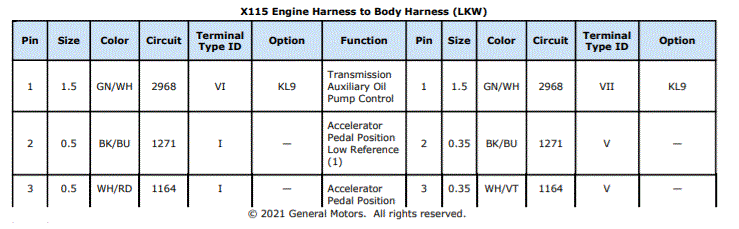

G00597693

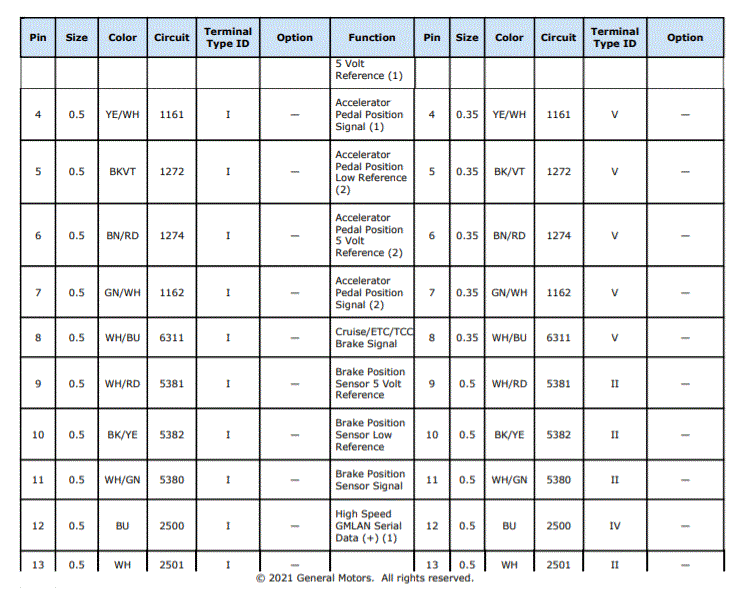

G00597694

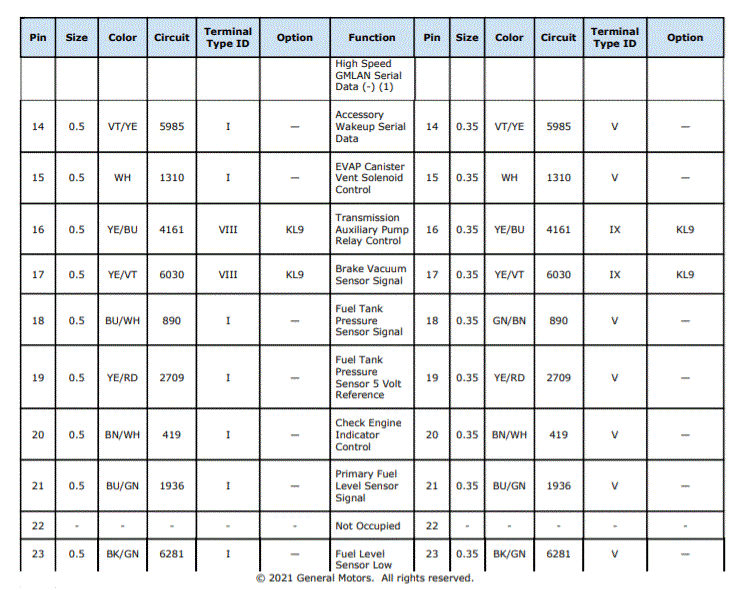

G00597695

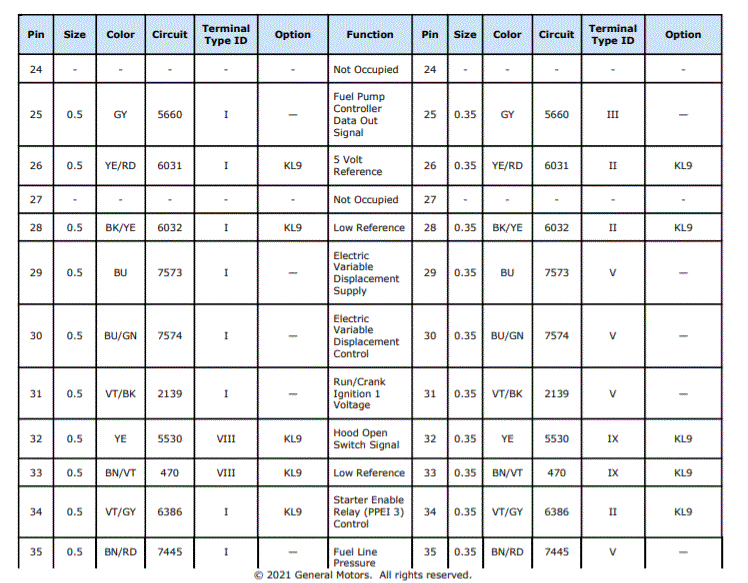

G00597696

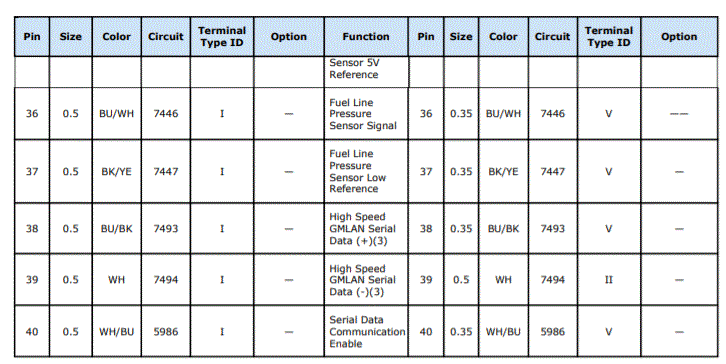

G00597697
