Front Fender Replacement

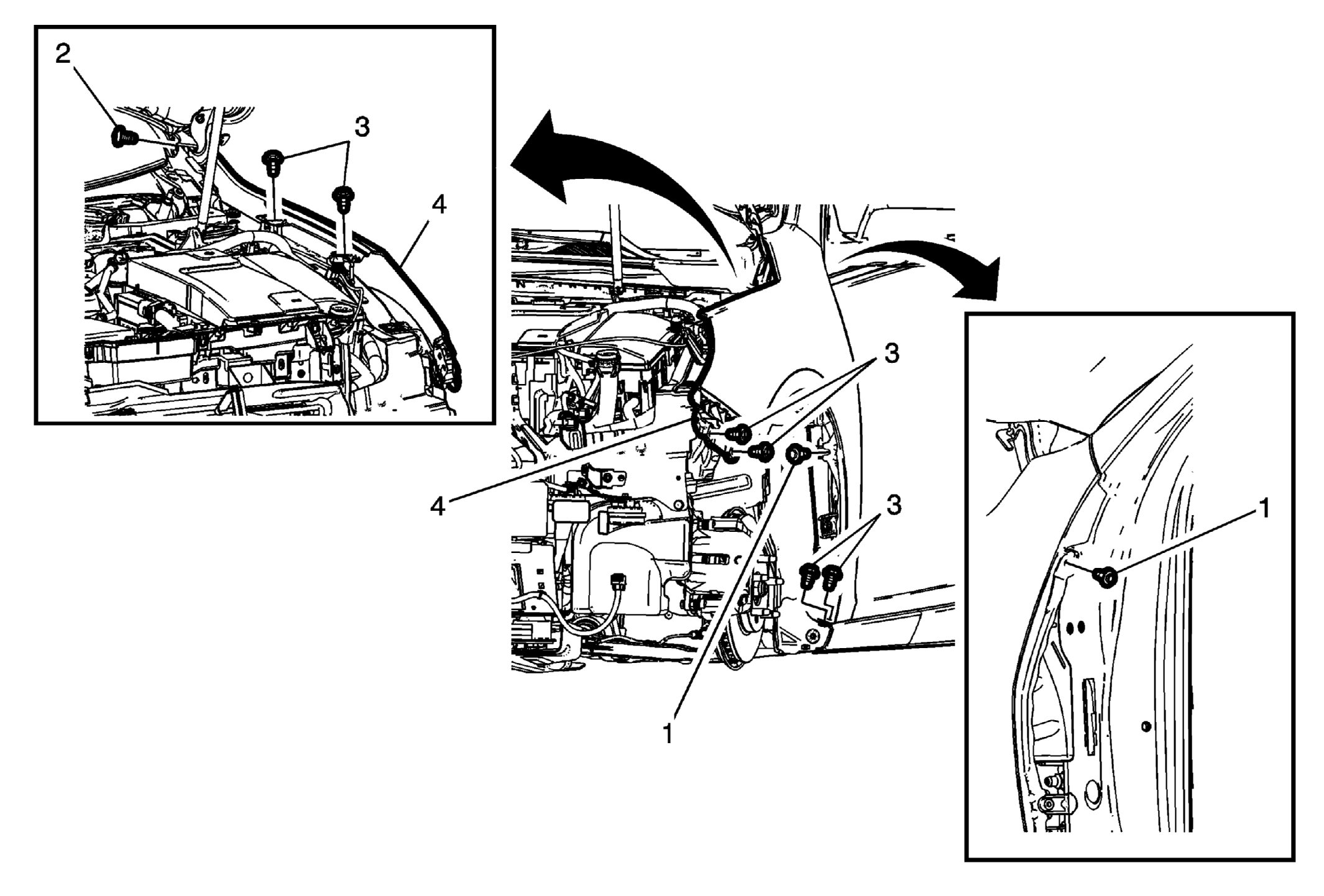

Fig 1: Front Fender & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the headlamp. Refer to Headlamp Replacement (Left Side) , Headlamp Replacement (Right Side) . Remove the front wheelhouse liner rear. Refer to Front Wheelhouse Rear Liner Replacement (Left Side) , Front Wheelhouse Rear Liner Replacement (Right Side) . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Remove the air inlet grille panel extension. Refer to Air Inlet Grille Panel Extension Replacement .
1	Front Fender Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Loosen the bolt. Do not remove bolt. Tighten 9 N.m (80 lb in)
2	Front Fender Bolt Procedure Loosen the bolt. Do not remove bolt. Tighten 9 N.m (80 lb in)
3	Front Fender Bolt (Qty: 6) Tighten 9 N.m (80 lb in)
4	Front Fender
