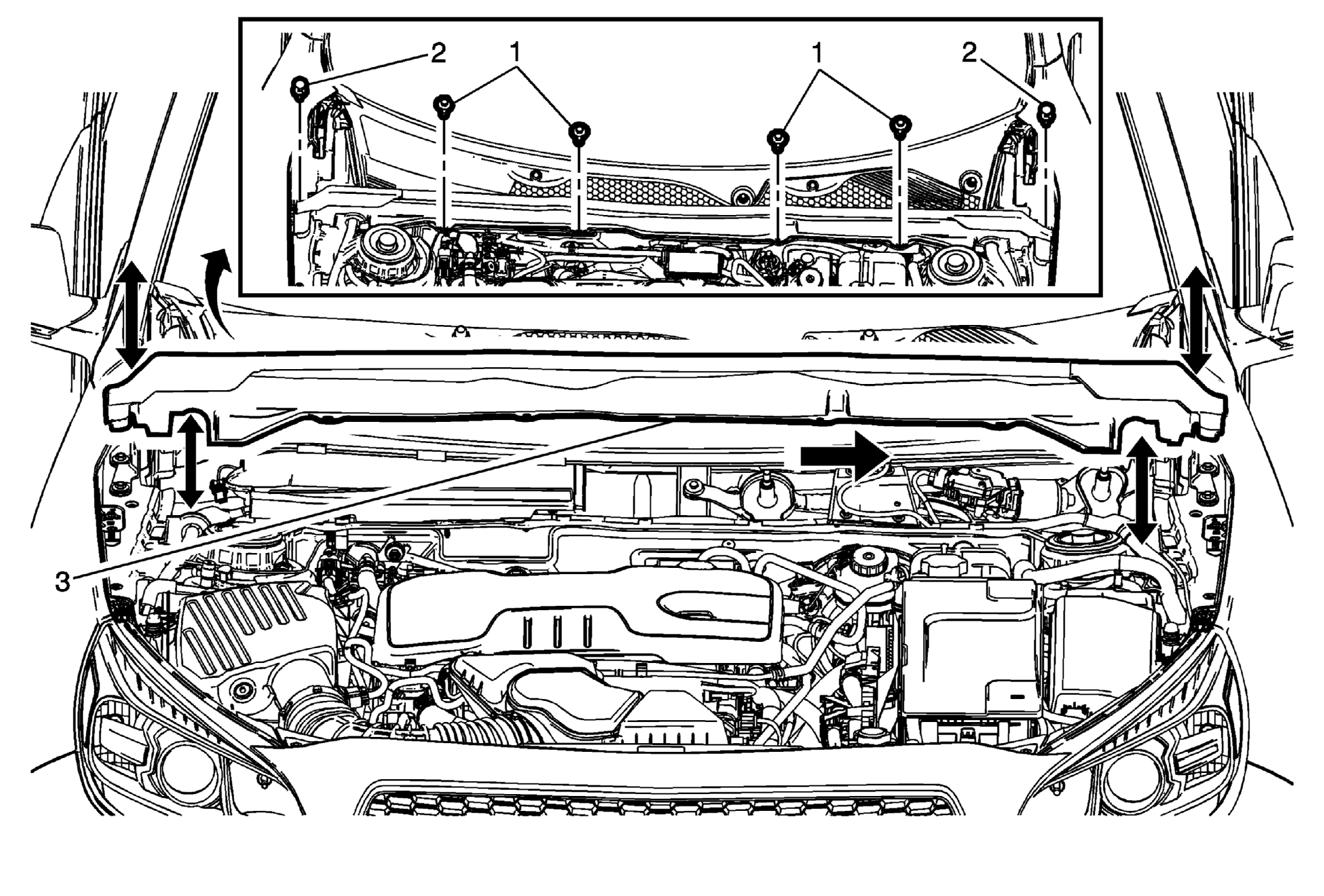

Air Inlet Grille Panel Replacement
Courtesy of GENERAL MOTORS COMPANY Air Inlet Grille Panel Replacement
| Callout |
Component Name |
|
Preliminary Procedure
- Remove both wiper arm assemblies. Refer to Windshield Wiper Arm Replacement .
- Remove the air inlet grille panel extensions. Refer to Air Inlet Grille Panel Extension Replacement
|
| 1 |
Air Inlet Panel Screw (Qty: 4)
Tighten
2.5 N.m (22 lb in) |
| 2 |
Air Inlet Grille Panel Push-In Retainer (Qty: 2) |
| 3 |
Air Inlet Grille Panel Procedure
- Lift the front edge of the grille panel up.
- Use a suitable plastic tool to release the air inlet grille panel from the windshield.
- Slide the air inlet grille panel forward from both hood hinges.
- Disconnect the windshield wiper hose from the air inlet grille panel.
- Remove the air inlet grille panel from the vehicle.
- Ensure all foam seals are in place.
|
