Air Inlet Grille Panel Extension Replacement
Courtesy of GENERAL MOTORS COMPANY Air Inlet Grille Panel Extension Replacement

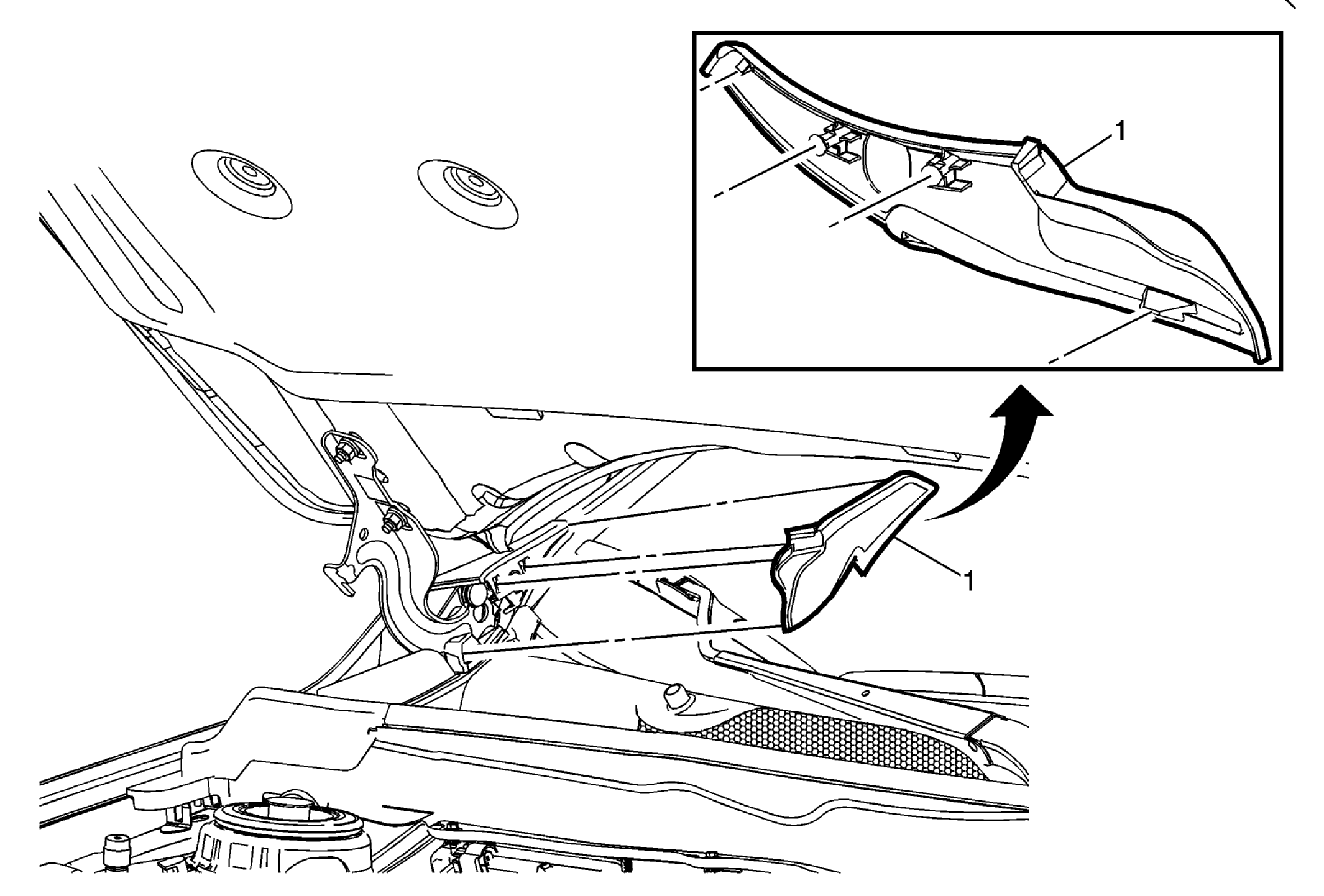

| Callout |
Component Name |
| 1 |
Air Inlet Grille Panel Extension
Procedure
Grasp the grille panel extension and disengage the retainers from the rear edge of the fender and rear edge of the air inlet panel. |
