Rear Seat Back Bolster Replacement

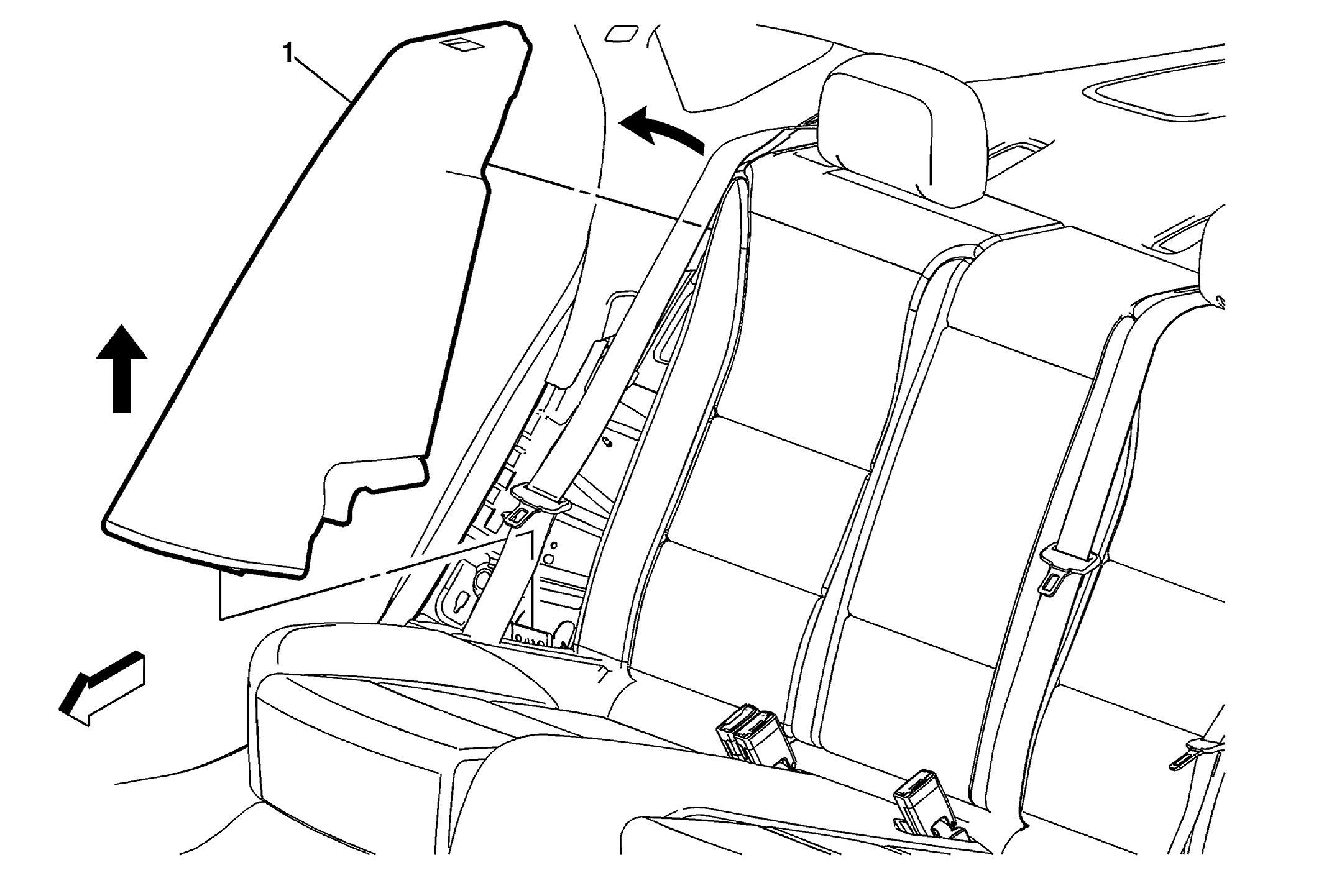

Fig 1: Rear Seat Back Bolster
GM2919984Courtesy of GENERAL MOTORS COMPANY
Rear Seat Back Bolster Replacement

Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury.

Preliminary Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling
  2. Remove the rear seat belt guide trim cover. Refer to Rear Seat Belt Guide Trim Cover Replacement .
1 Rear Seat Back Cushion Bolster

Procedure

  1. Pull the upper seat back cushion bolster forward.
    NOTE:

    Fold rear seat back cushion down to gain better access to the back of bolster. Use a flat bladed short screw driver to aid in releasing the retainer from the bolster's retaining bar.

  2. Pull the seat back cushion bolster up.
  3. Disconnect the electrical connector.
  4. Remove rear seat back cushion bolster.
  5. Remove the rear seat side airbag. Refer to Rear Seat Side Airbag Replacement .
