Rear Seat Belt Guide Trim Cover Replacement

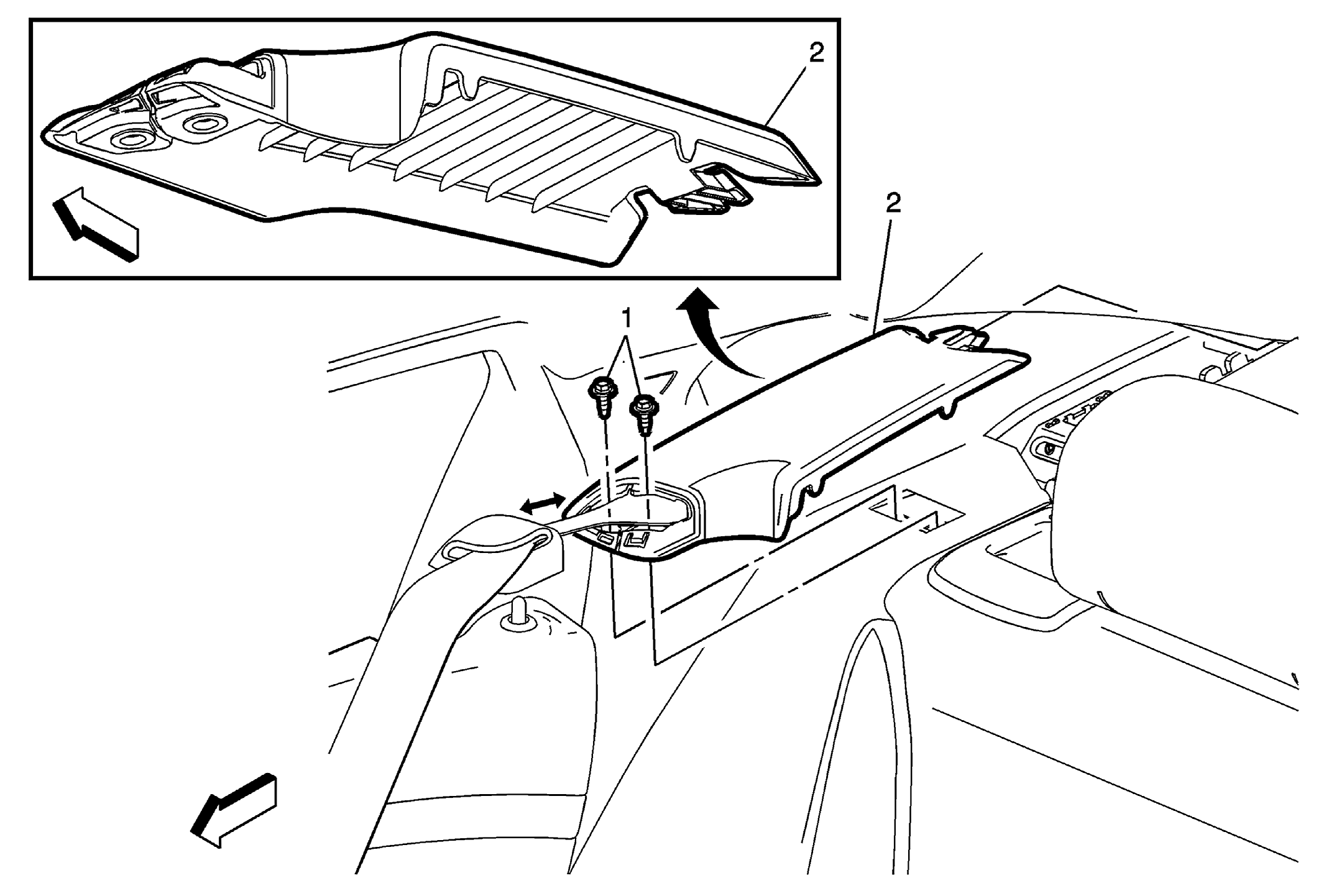

Fig 1: Rear Seat Belt Guide Trim Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disengage the rear seat belt opening bezel from the trim cover. Refer to Rear Seat Belt Opening Bezel Replacement .
1	Rear Seat Belt Guide Trim Cover Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Rear Seat Belt Guide Trim Cover Procedure Pull the cover upward first to disengage the lower retainers. Remove the rear seat belt guide cover by sliding the cover forward. Route the seat belt through trim panel.

Callout

Component Name

Preliminary Procedures
Disengage the rear seat belt opening bezel from the trim cover. Refer to Rear Seat Belt Opening Bezel Replacement .

Rear Seat Belt Guide Trim Cover Fastener (Qty: 2)

CAUTION:

Rear Seat Belt Guide Trim Cover

Procedure
