Rear Seat Side Airbag Replacement
Courtesy of GENERAL MOTORS COMPANY Rear Seat Side Airbag Replacement

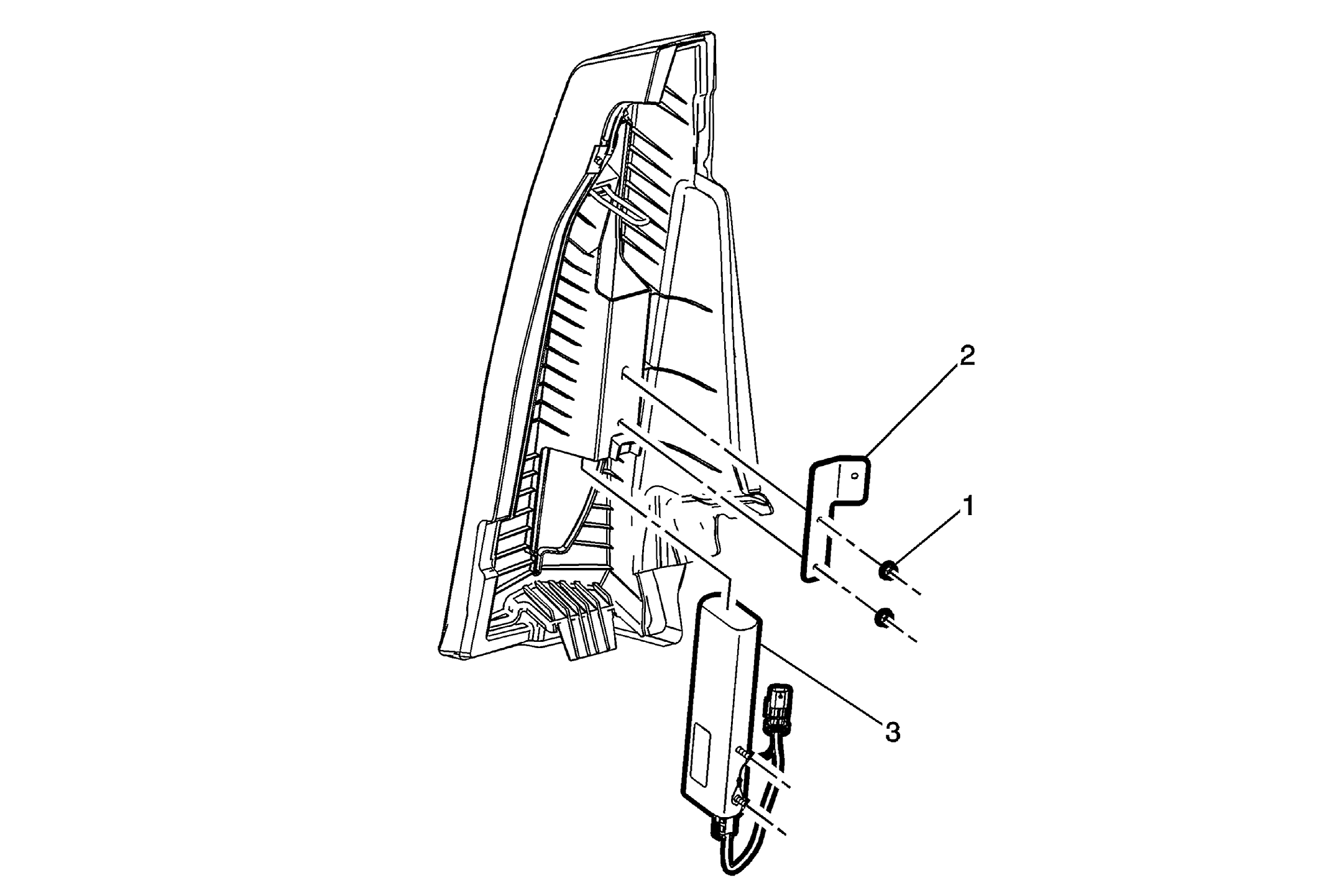

| Callout |
Component Name |
WARNING:
Following the deployment of a rear seat side air bag, inspect the following parts for damage. Replace these parts if necessary:
- The rear seat side bolster, attachments, brackets and wiring
- The rear seat back frame, cushion and cover
- The rear seat cushion frame, cushion and cover
Failure to do so may cause future personal injury.
Preliminary Procedure
- Disable the SIR system, if equipped. Refer to SIR Disabling and Enabling .
- Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement
.
|
| 1 |
Rear Seat Side Airbag Nut (Qty: 2)
Tighten
3.5 (31 lb in) |
| 2 |
Rear Seat Side Airbag Bracket |
| 3 |
Rear Seat Side Airbag Procedure
- Remove the connector position assurance (CPA) from the module electrical connector.
- Disconnect the electrical connector.
- Slide airbag out of airbag chute.
- Install seat side airbag into airbag chute with connector facing down. Airbag mounting studs must fit through airbag chute holes and then into the module bracket.
- Refer to Inflatable Restraint Module Handling and Scrapping .
|
