Instrument Panel Trim Plate Replacement

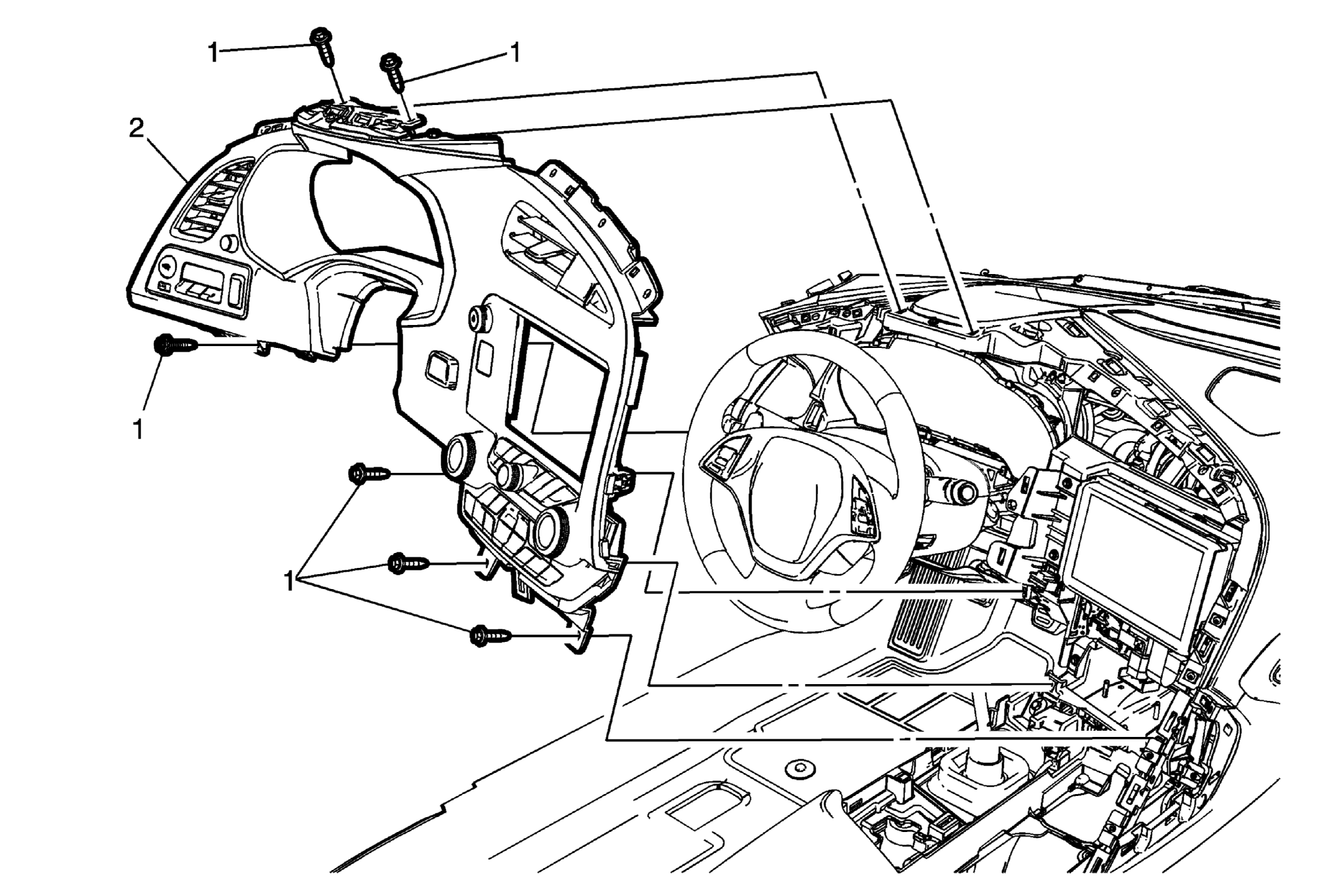

Fig 1: Instrument Panel Trim Plate
GM3351657Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Trim Plate Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel molding. Refer to Instrument Panel Molding Replacement .
  2. Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
1 Instrument Panel Trim Plate Bolt (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 (22 lb in)
2 Instrument Panel Trim Plate

Procedures

  1. Gentle pull back to release the retainer securing the trim plate to the instrument panel assembly.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
