Instrument Panel Knee Bolster Replacement

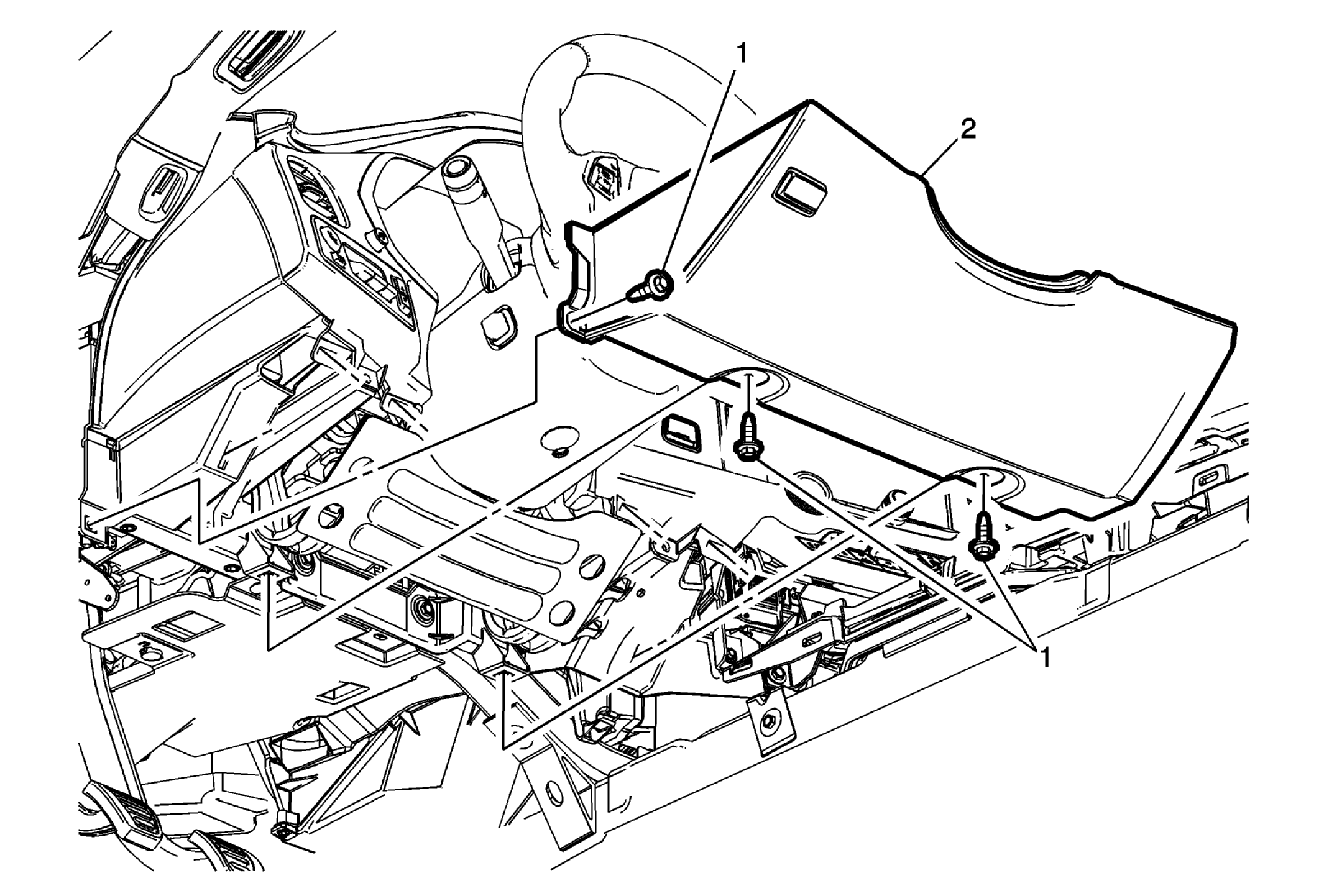

Fig 1: Instrument Panel Knee Bolster
GM3331375Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Knee Bolster Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the left front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Manual) , Front Floor Console Trim Plate Replacement (Automatic)
  2. Remove the left front side door sill garnish molding. Refer to Front Side Door Sill Garnish Molding Replacement .
1 Instrument Panel Knee Bolster Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 (22 lb in)
2 Instrument Panel Knee Bolster

Procedures

  1. Grasp the lower edge of the knee bolster and pull outward disengaging the retainers securing the panel to the instrument panel assembly.
  2. Disconnect the electrical connector.
