Instrument Panel Molding Replacement

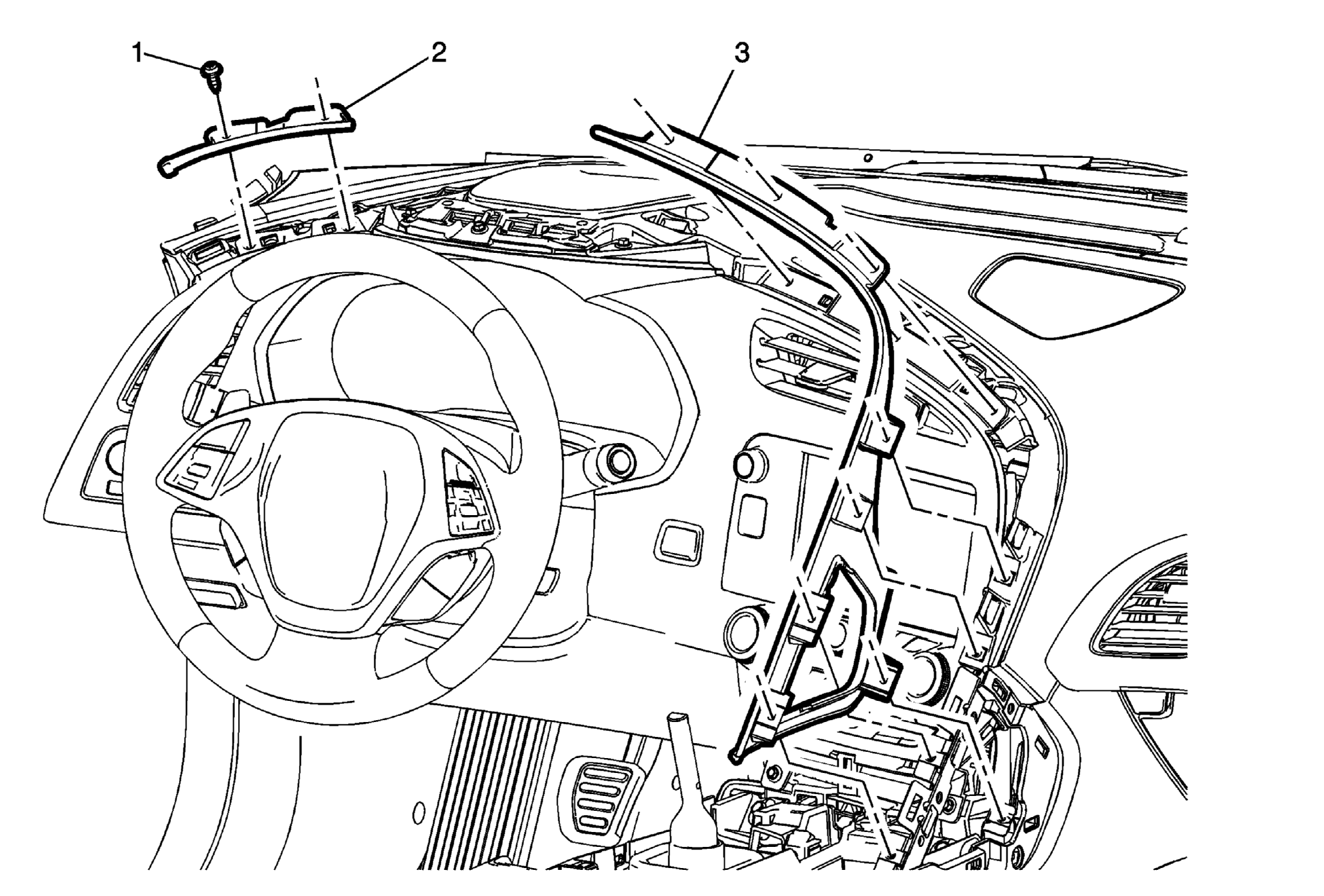

Fig 1: Instrument Panel Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement . Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement . Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Manual) , Front Floor Console Trim Plate Replacement (Automatic) .
1	Instrument Panel Molding Bolt (Qty: 10) CAUTION: Refer to Fastener Caution . Tighten 2.5 (22 lb in)
2	Instrument Panel Molding - Left
3	Instrument Panel Molding - Right
