Instrument Panel Center Upper Molding Replacement
Instrument Panel Center Upper Molding Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel assist handle. Refer to Instrument Panel Assist Handle Replacement . |
|

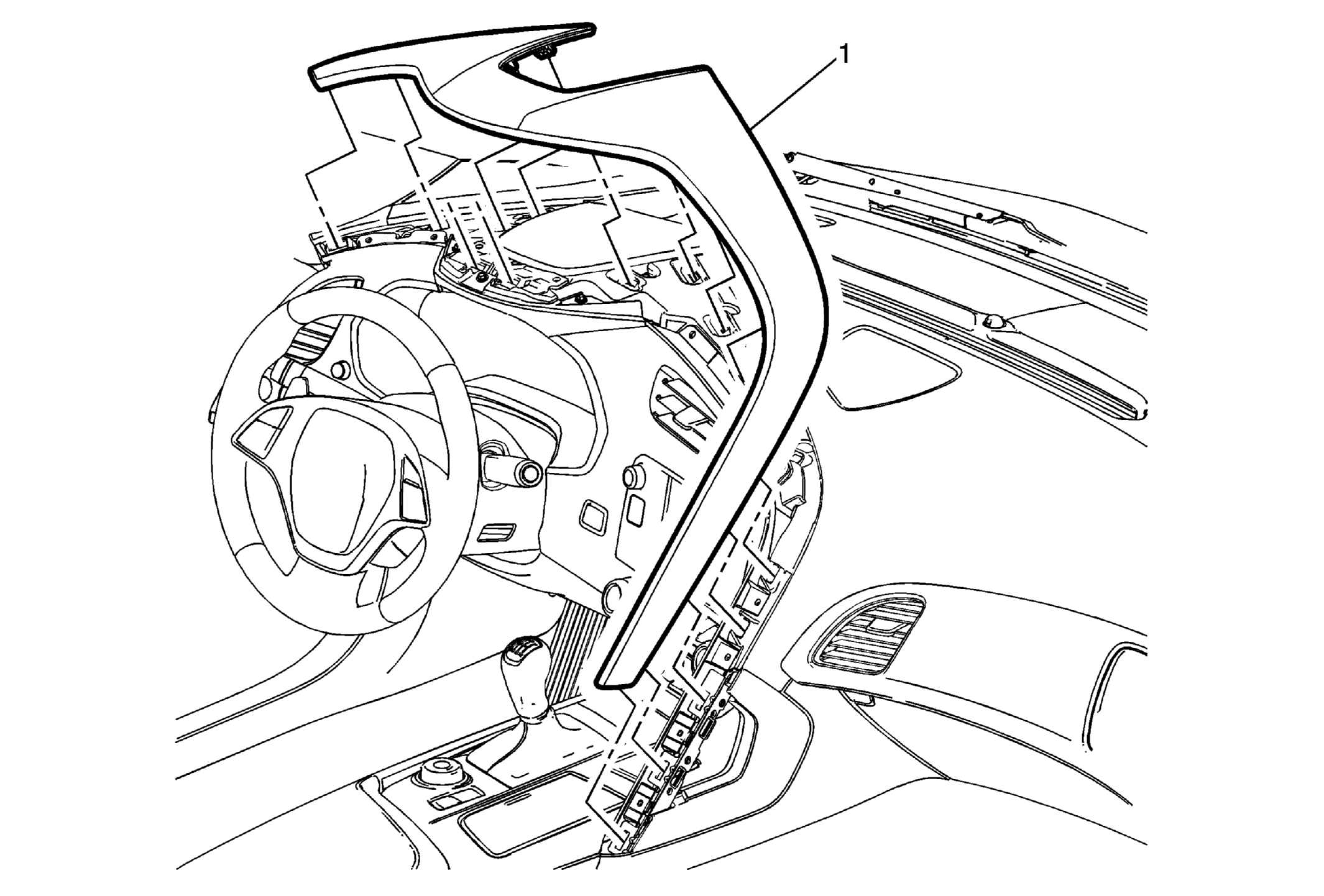

| 1 | Instrument Panel Center Upper Molding Procedure Use a flat bladed plastic trim tool in order to release the retainers securing the center upper molding to the instrument panel assembly. |
