Instrument Panel Lower Center Trim Panel Replacement
Instrument Panel Lower Center Trim Panel Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right instrument panel assist handle. Refer to Instrument Panel Assist Handle Replacement . |
|

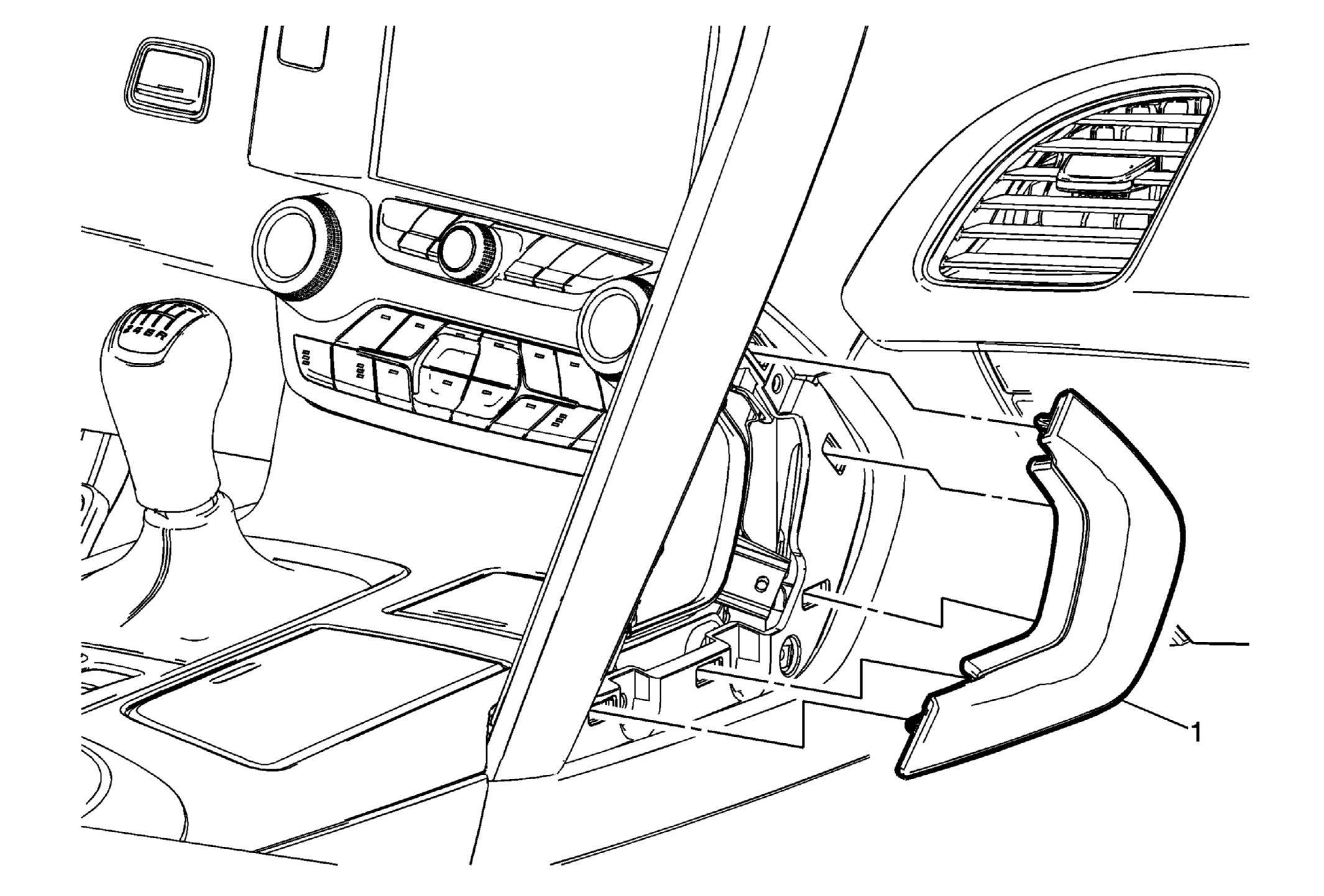

| 1 | Instrument Panel Lower Center Trim Panel Procedure Use a flat bladed plastic trim tool in order to release the retainers securing the trim panel to the instrument panel assembly. |
