Ambient Air Temperature Sensor Replacement

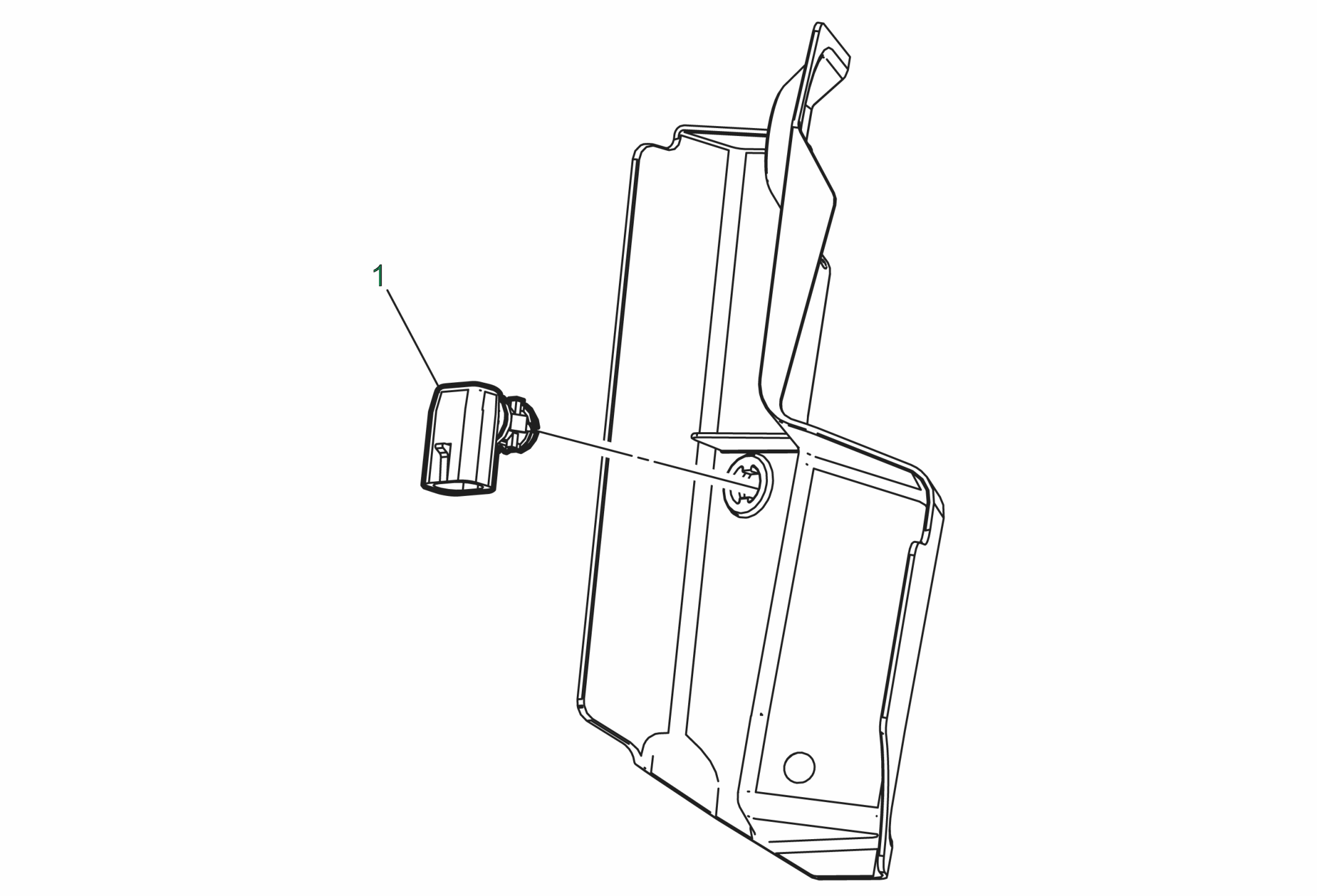

Fig 1: Ambient Air Temperature Sensor
GM3649223Courtesy of GENERAL MOTORS COMPANY
Call out Component Name
Preliminary Procedure
Remove the right side radiator air side baffle. Refer to Radiator Air Side Baffle and Deflector Replacement (Right) .
1 Ambient Air Temperature Sensor

Procedure

  1. Disconnect the ambient air temperature sensor electrical connector.
  2. Un-clip the ambient air temperature sensor from the radiator air side baffle.

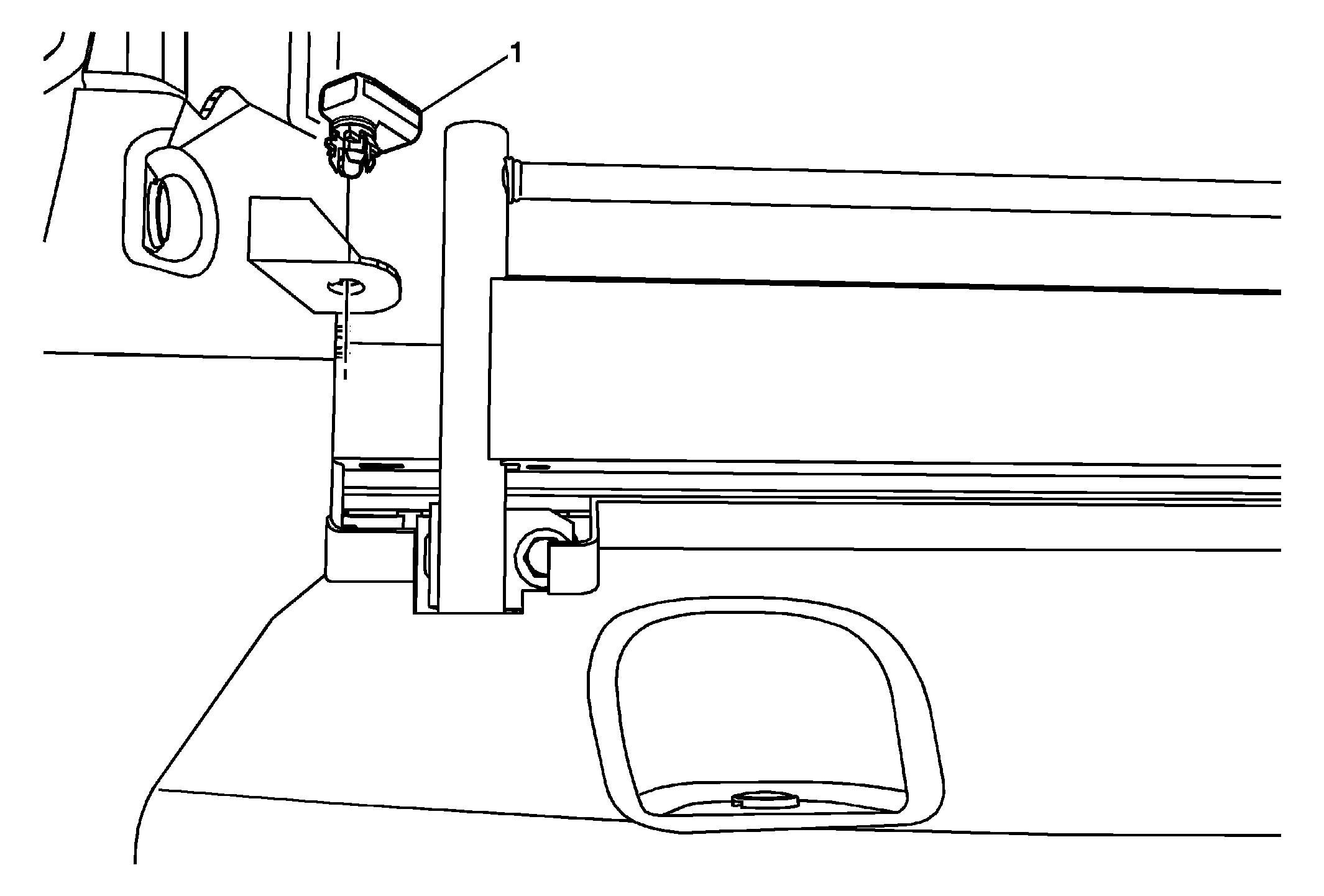

Fig 1: Ambient Air Temperature Sensor
GM2204712Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Front Bumper Fascia Upper Support. Refer to Front Bumper Fascia Upper Support Replacement .
1 Ambient Air Temperature Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Unsnap the temperature sensor from the air deflection/baffler.
