Radiator Air Side Baffle and Deflector Replacement (Right)

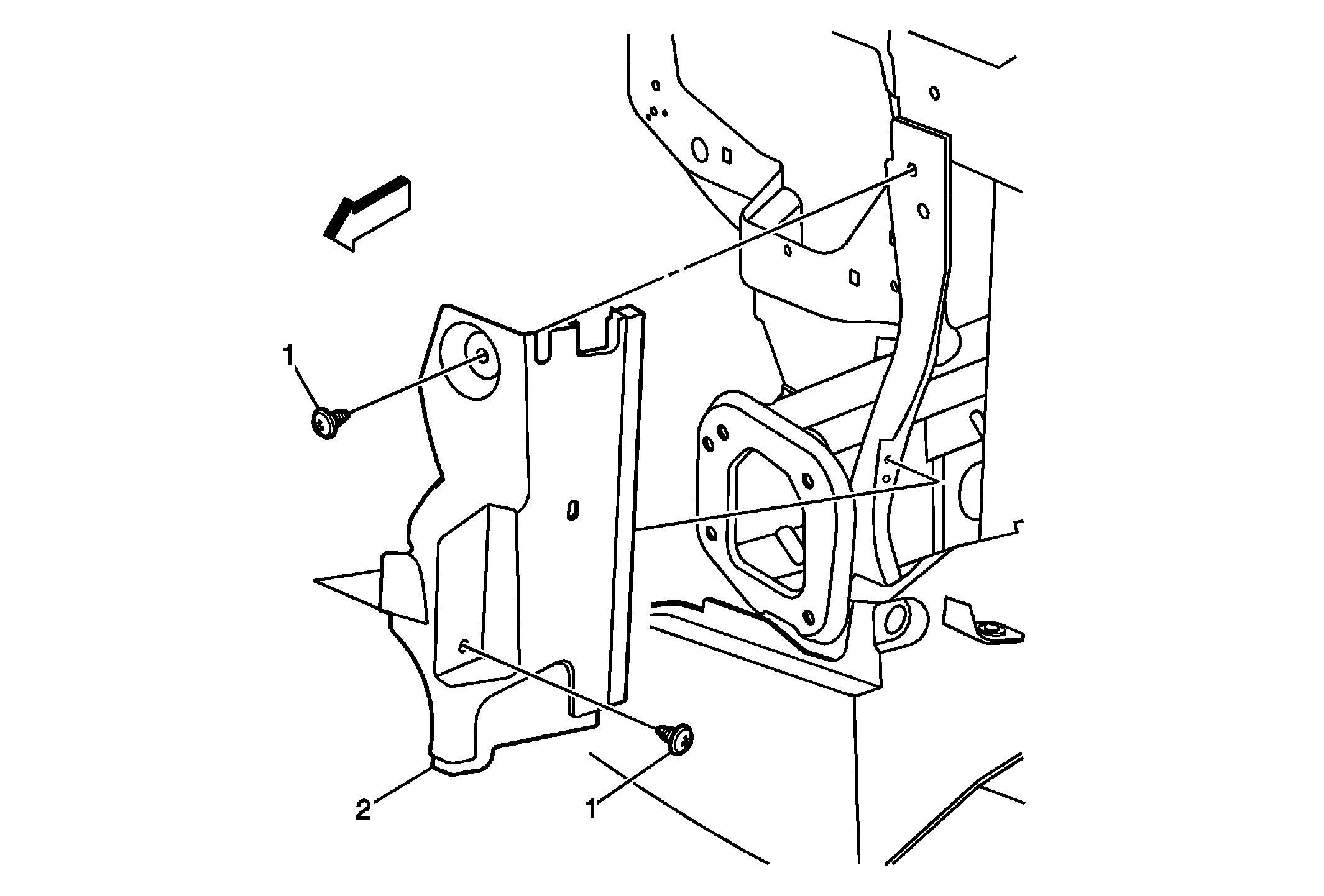

Fig 1: Radiator Air Side Baffle & Deflector Replacement (Right)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove front bumper fascia. Refer to Front Bumper Fascia Replacement (Base, RS, SS) .
1	Radiator Air Side Baffel and Deflector Right Retainer (Qty:2)
2	Radiator Air Side Baffel and Deflector Right
