Front Bumper Fascia Upper Support Replacement

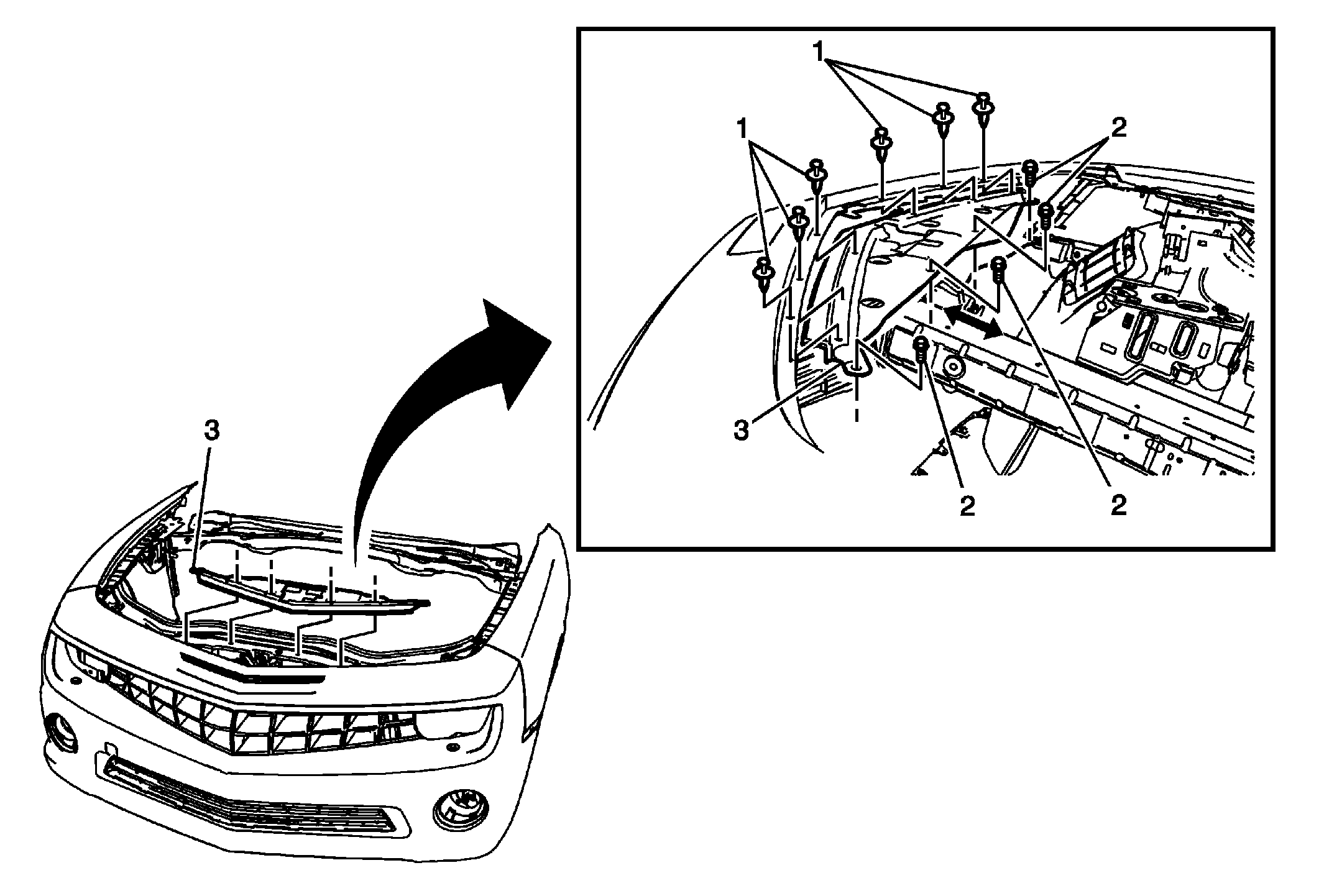

Fig 1: Front Bumper Fascia Upper Support, Push-In-Retainers And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Bumper Fascia Upper Support Push-In Retainer (Qty:6)
2	Front Bumper Fascia Upper Support Bolt (Qty:4) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
3	Front Bumper Fascia Upper Support Procedure  Slide upward and rearward to clear hood primary latch.
