Driver Or Passenger Seat Cushion Heater Replacement

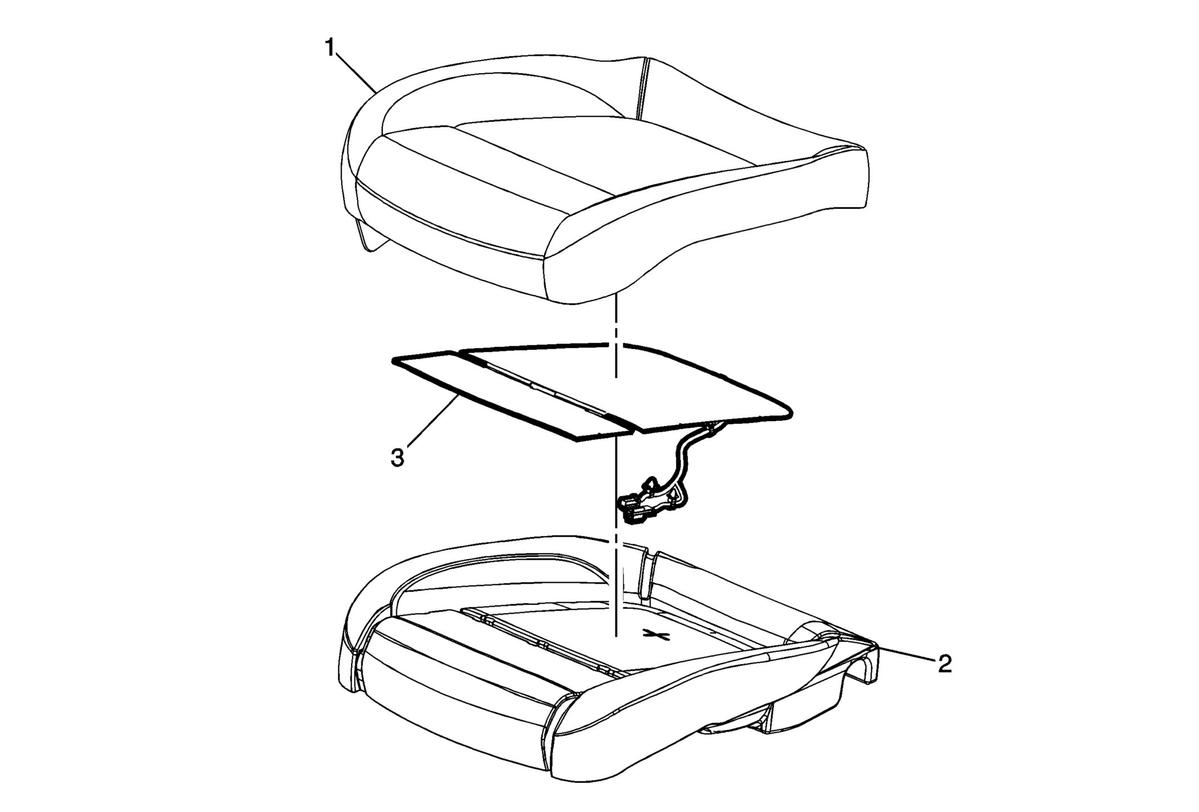

Fig 1: Driver Or Passenger Seat Cushion Heater
GM2772767Courtesy of GENERAL MOTORS COMPANY
Driver or Passenger Seat Cushion Heater Replacement

Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedures

  1. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
  2. Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1 Front Seat Cushion Cover
Procedure
Separate the seat cushion cover from the seat cushion pad by pulling the cover away from the pad.
2 Front Seat Cushion Pad
NOTE:

The seat belt presence sensor and heat mat if equipped, are integral parts of the seat cushion pad.
3 Front Seat Cushion Heater
Procedure
Heater is a integral part of the seat cushion pad. The pad and heater should be replaced as a assembly.
