Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transmission range selector lever cable to the vehicle.
    2. Fig 1: Gear Shift Cable Grommet & Fasteners
    GM2526950Courtesy of GENERAL MOTORS COMPANY
  2. Install the transmission range selector lever cable grommet to the cowl panel.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the grommet fasteners (2) and tighten to 9 N.m (80 lb in).

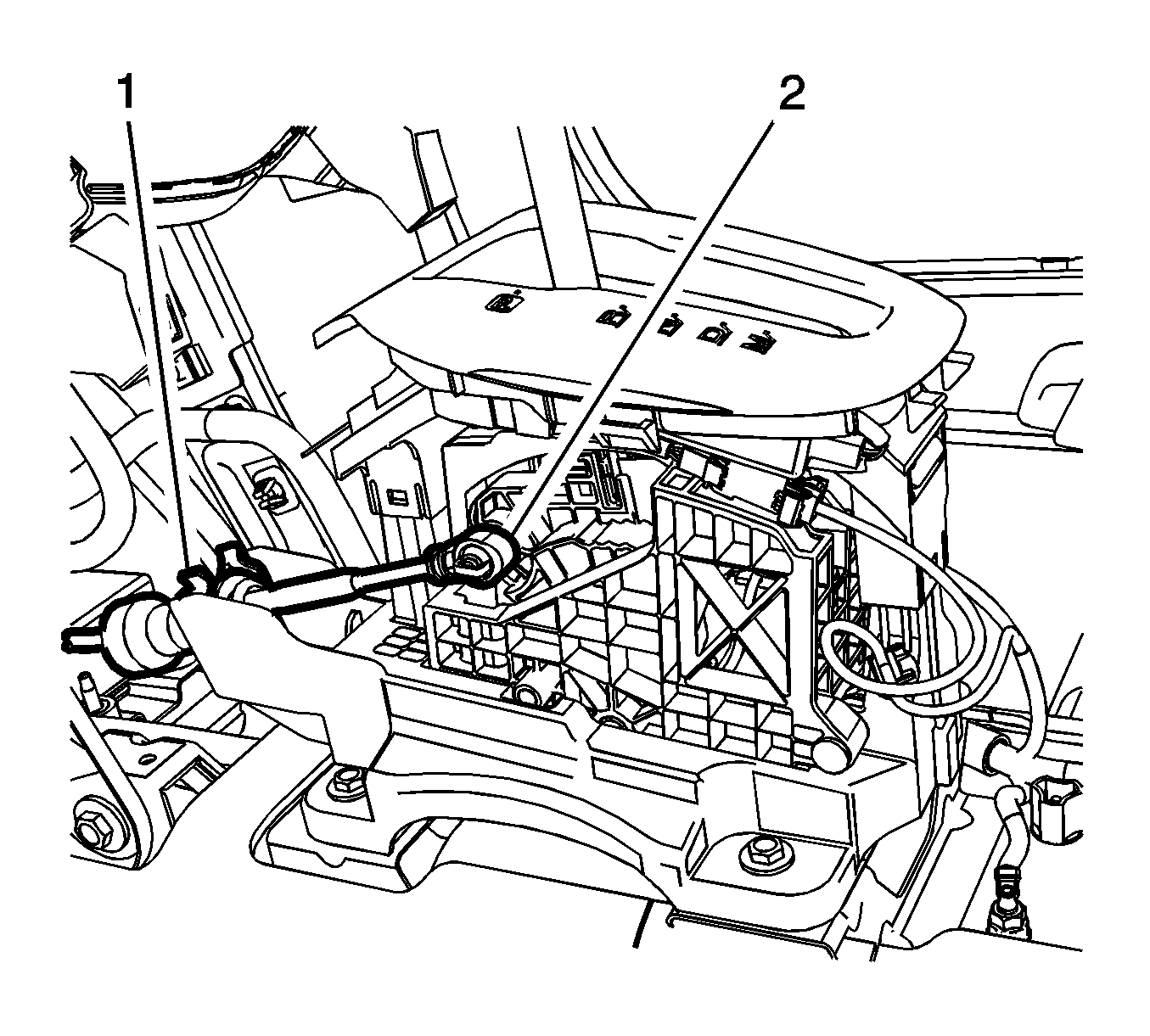

    4. Fig 2: Automatic Transmission Range Selector Lever Cable Terminal & Retainer
    GM2492809Courtesy of GENERAL MOTORS COMPANY
  4. Install the transmission range selector lever cable to the transmission control lever base. Insure the cable retainer (1) is fully secured to the transmission control lever base.
  5. Connect the transmission range selector lever cable terminal (2) to the shift lever pin.
  6. Install the console. Refer to Front Floor Console Replacement .
    7. Fig 3: Automatic Transmission Range Selector Lever Cable Terminal & Shift Lever Pin
    GM2492632Courtesy of GENERAL MOTORS COMPANY
  7. Install the transmission range selector lever cable (2) to the cable bracket.
  8. Connect the transmission range selector lever cable terminal (1) to the transmission manual shift lever pin.
  9. Adjust the automatic transmission range selector lever cable. Refer to Range Selector Lever Cable Adjustment .
