Front Floor Console Replacement

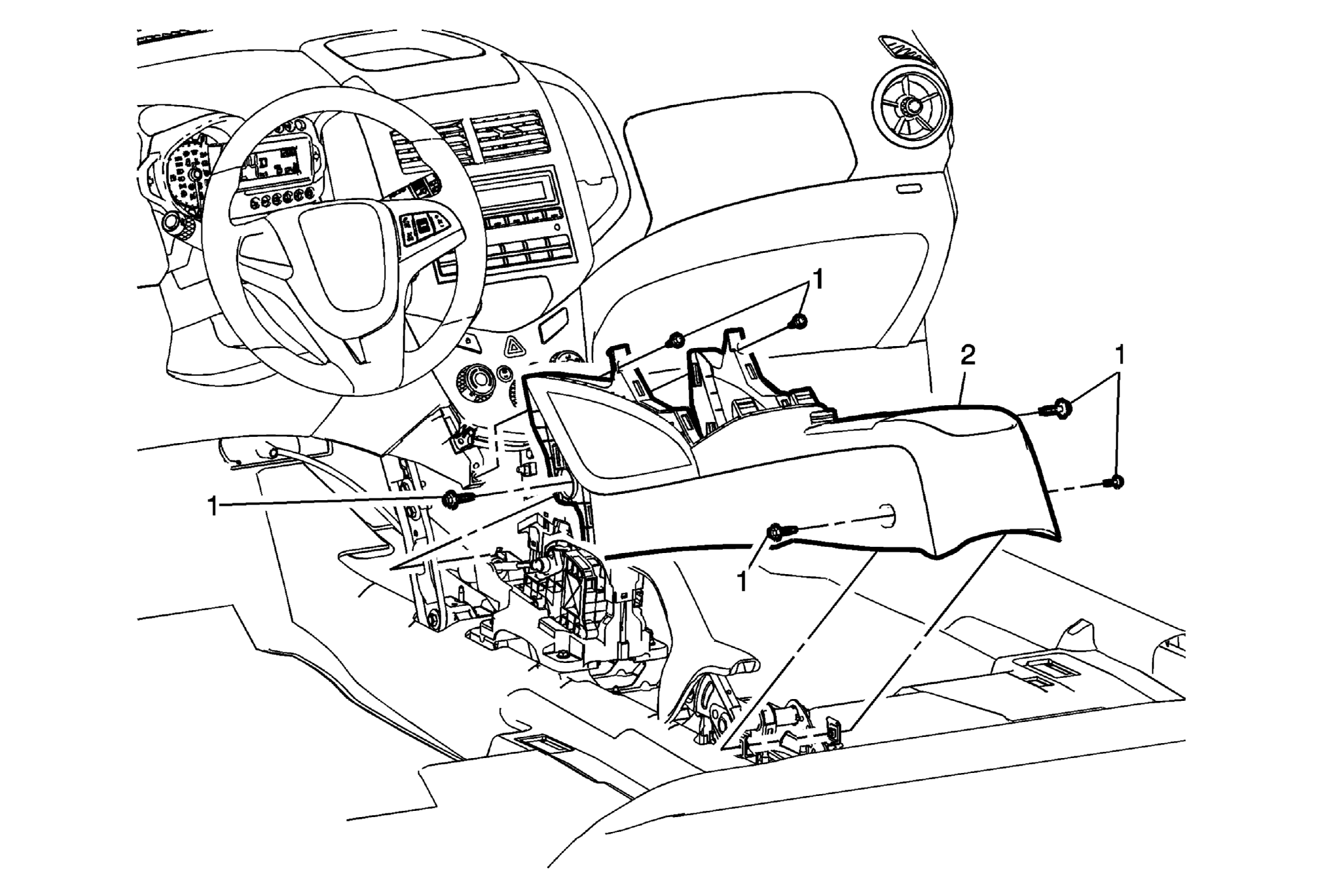

Fig 1: Front Floor Console
GM2673140Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the right and left front floor console extensions. Refer to Front Floor Console Extension Replacement - Right Side , and Front Floor Console Extension Replacement - Left Side .
  2. Remove the front floor console cover assembly. Refer to Front Floor Console Cover Replacement (Manual Transmission) , Front Floor Console Cover Replacement (Automatic Transmission) .
1 Front Floor Console Fasteners (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Procedure
Move the front seats to the full forward position to access the front floor console rear fasteners.
2 Front Floor Console

Procedures

  1. Disconnect the electrical connections.
  2. When replacing the console, transfer all necessary components.
