Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the seals for cracks, cuts or damage. Replace if necessary.

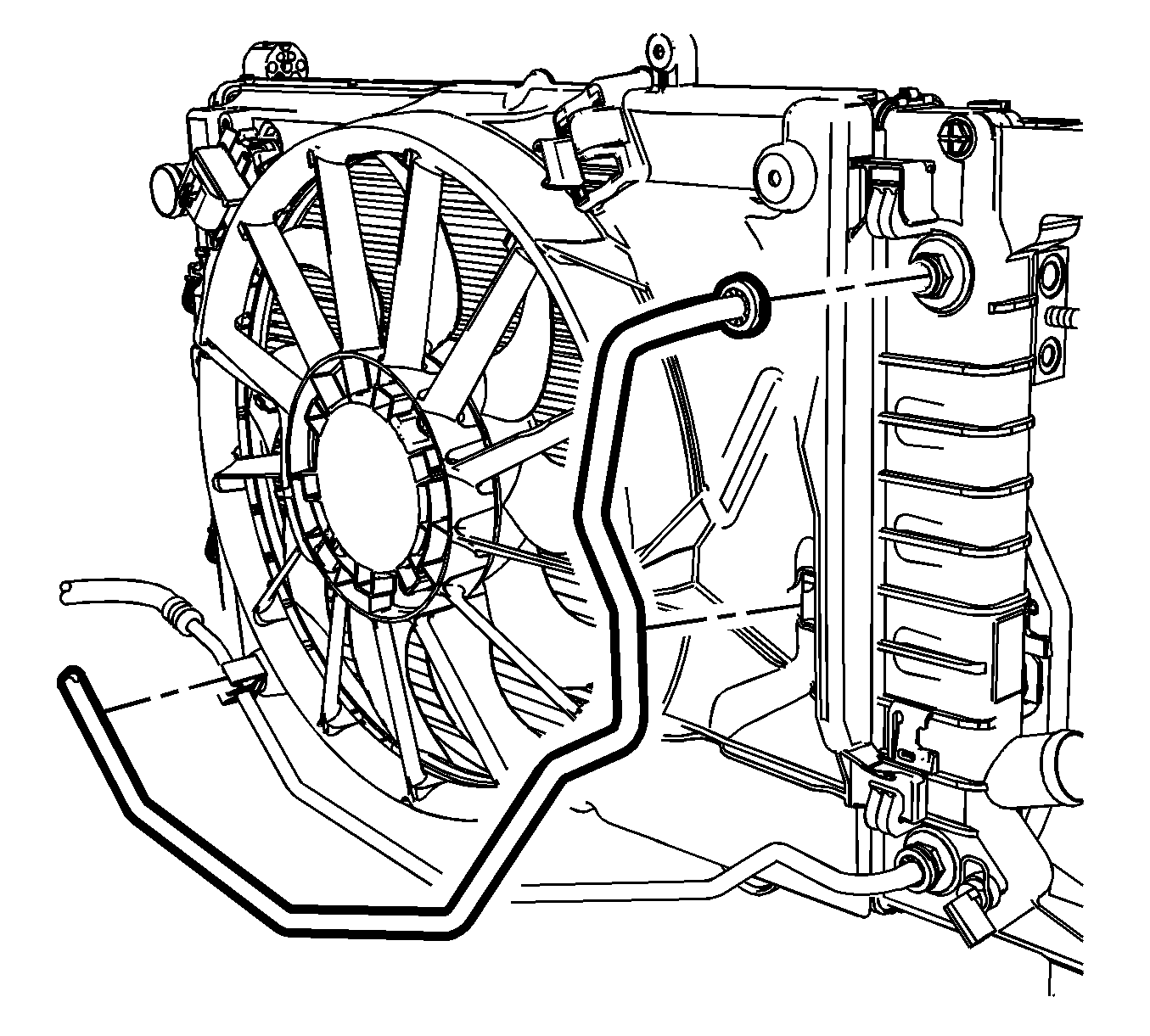

    2. Fig 1: Fluid Cooler Outlet Hose
    GM2508158Courtesy of GENERAL MOTORS COMPANY
  2. Install the transmission fluid cooler hose to the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
  3. Clip the transmission fluid cooler hose to the fan shroud.

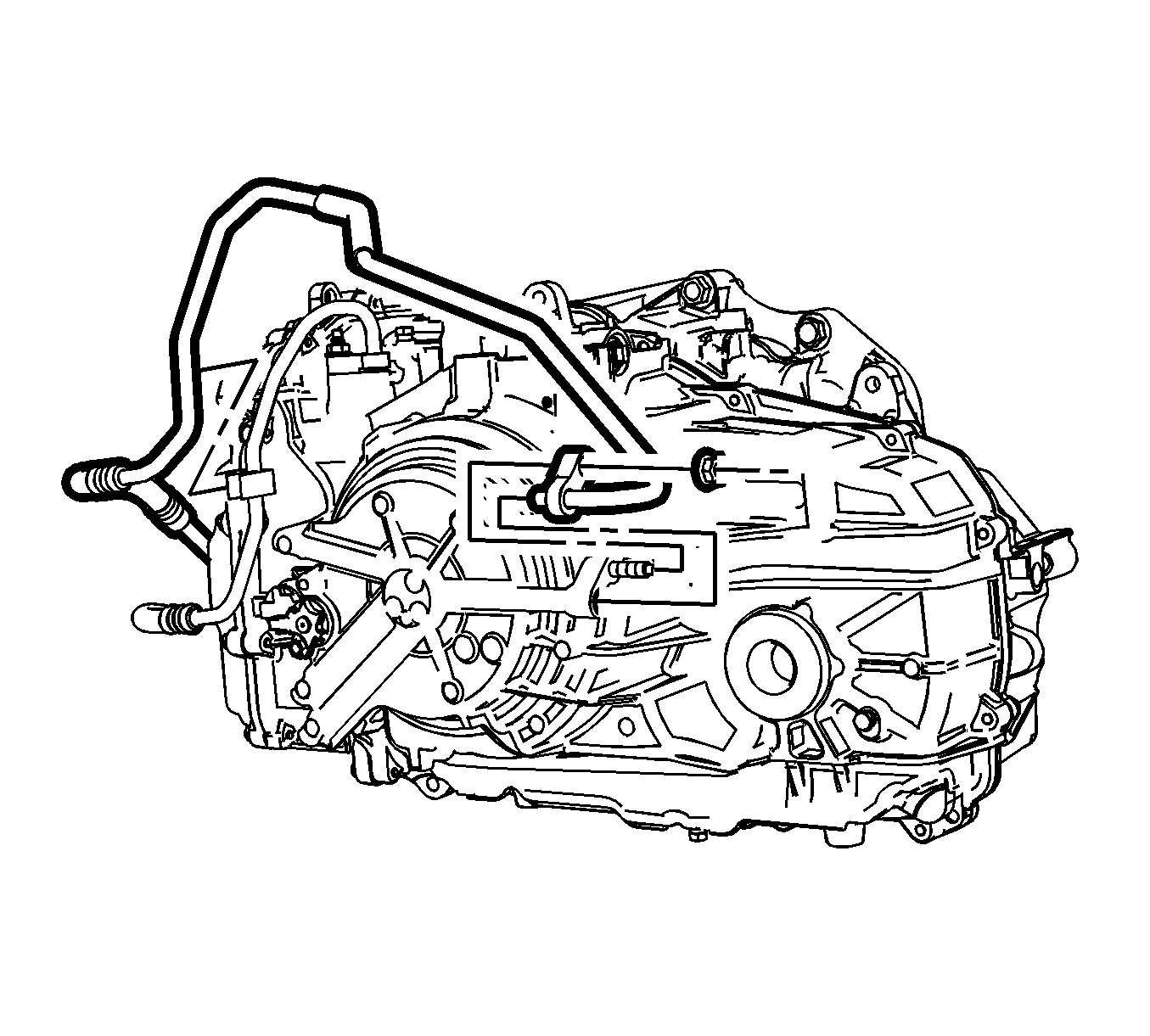

    4. Fig 2: Fluid Cooler Outlet Hose Nut
    GM2508165Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  4. Install and clip the trans fluid cooler hose to the transmission.
  5. Install the trans fluid cooler nut and tighten to 22 N.m (17 lb ft).
  6. Install the front wheelhouse liner inner front extension. Refer to Front Wheelhouse Liner Inner Front Extension Replacement (Left SIde) , Front Wheelhouse Liner Inner Front Extension Replacement (Right Side, LUV) , Front Wheelhouse Liner Inner Front Extension Replacement (Right SIde, LWE, LUW)
  7. Install the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement
  8. Adjust the transmission fluid level.
  9. Inspect for fluid leaks.
