Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Install the control valve body cover wiring connector hole seal (4).
- Install the control valve body cover gasket (3) to the control valve body cover.
- Install the control valve body cover (2).
- Hand start the control valve body cover bolts (1).
- Install the control valve body cover bolts. Tighten the bolts in sequence to 12 N.m (106 lb in).
- Connect the control valve body transmission control module electrical connector (1), then clip the wiring harness to the cover.
- Raise the vehicle.

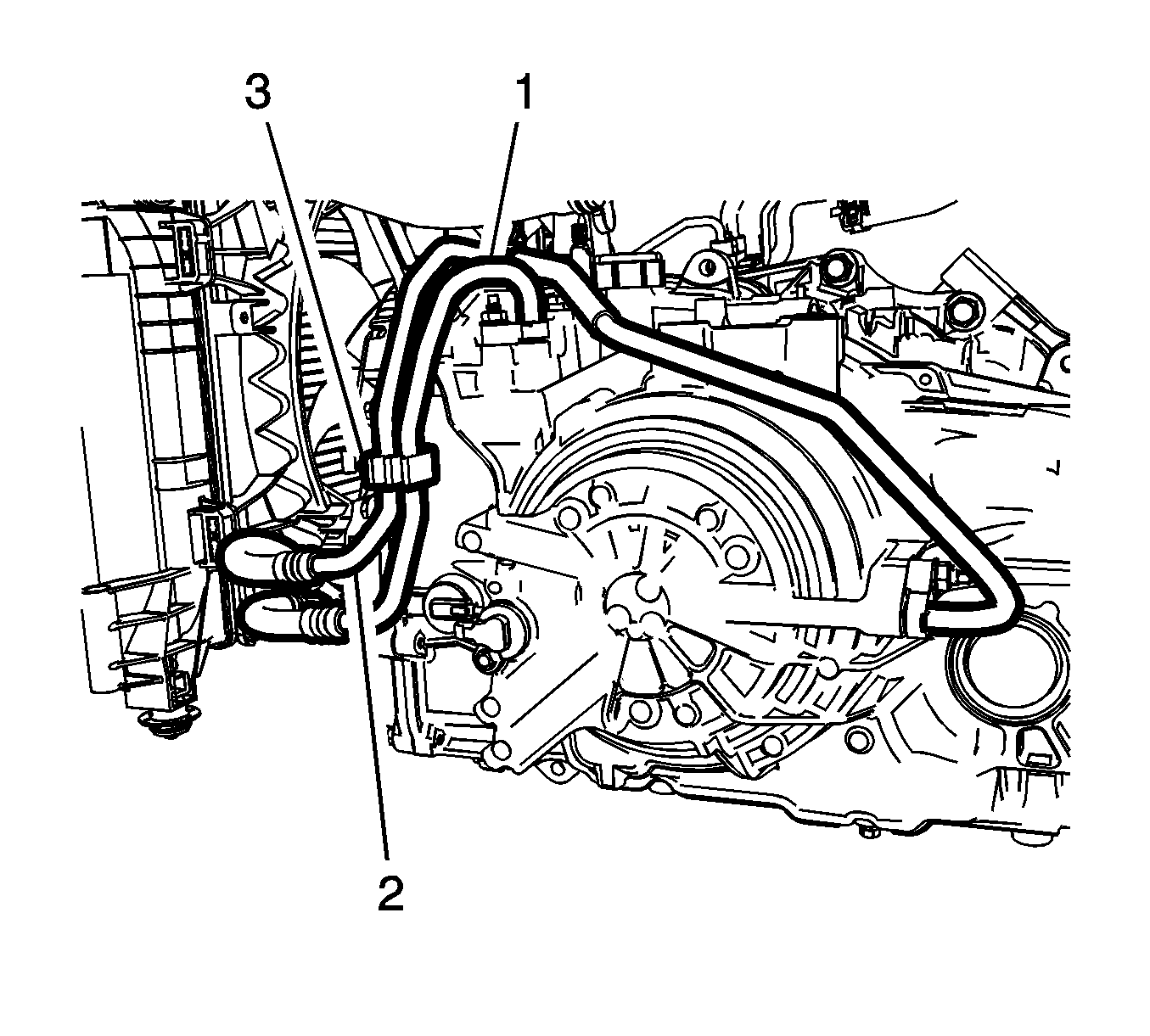

- Install the oil cooler inlet (1) and outlet (2) hoses to the retainer (3) on the control valve body cover.
- Install the front wheel house liner inner front extension. Refer to Front Wheelhouse Liner Inner Front Extension Replacement (Left SIde) , Front Wheelhouse Liner Inner Front Extension Replacement (Right Side, LUV) , Front Wheelhouse Liner Inner Front Extension Replacement (Right SIde, LWE, LUW) .
- Install the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement .
- Fill the transmission with correct fluid.
- Check transmission fluid level. Refer to Transmission Fluid Level and Condition Check .
- Lower the vehicle.
- Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
- Check for leaks.
CAUTION:
Refer to Fastener Caution .
NOTE:
Install all control valve body cover bolts and studs by hand then torque all bolts and studs in sequence.
