Fuel Tank Filler Door Latch Housing Replacement

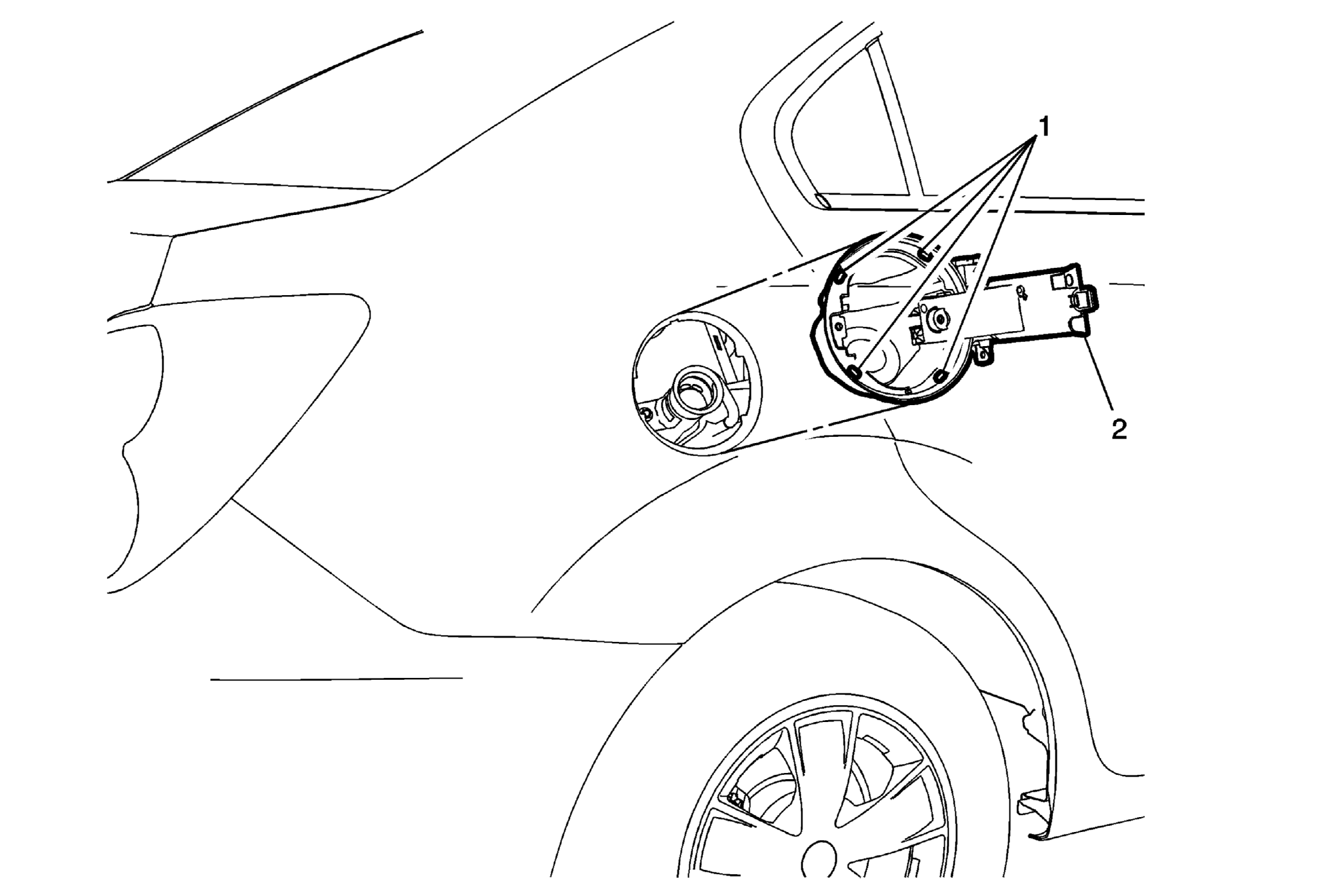

Fig 1: Fuel Tank Filler Door Latch Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement (Hatchback - Right) , Rear Wheelhouse Liner Replacement (Sedan - Left) , Rear Wheelhouse Liner Replacement (Hatchback - Left) , Rear Wheelhouse Liner Replacement (Sedan - Right) . Remove the fuel tank filler door. Refer to Fuel Tank Filler Door Replacement .
1	Fuel Tank Filler Door Latch Housing Retainer (Qty: 4) Procedure Release the 4 filler door latch housing retainers on the back of the housing.
2	Fuel Tank Filler Door Latch Housing Procedure Press the fuel tank filler housing outward from the fuel filler pipe and the quarter panel.

Callout

Component Name

Preliminary Procedures

Fuel Tank Filler Door Latch Housing Retainer (Qty: 4)
Procedure
Release the 4 filler door latch housing retainers on the back of the housing.

Fuel Tank Filler Door Latch Housing
Procedure
Press the fuel tank filler housing outward from the fuel filler pipe and the quarter panel.
