Fuel Tank Filler Door Replacement

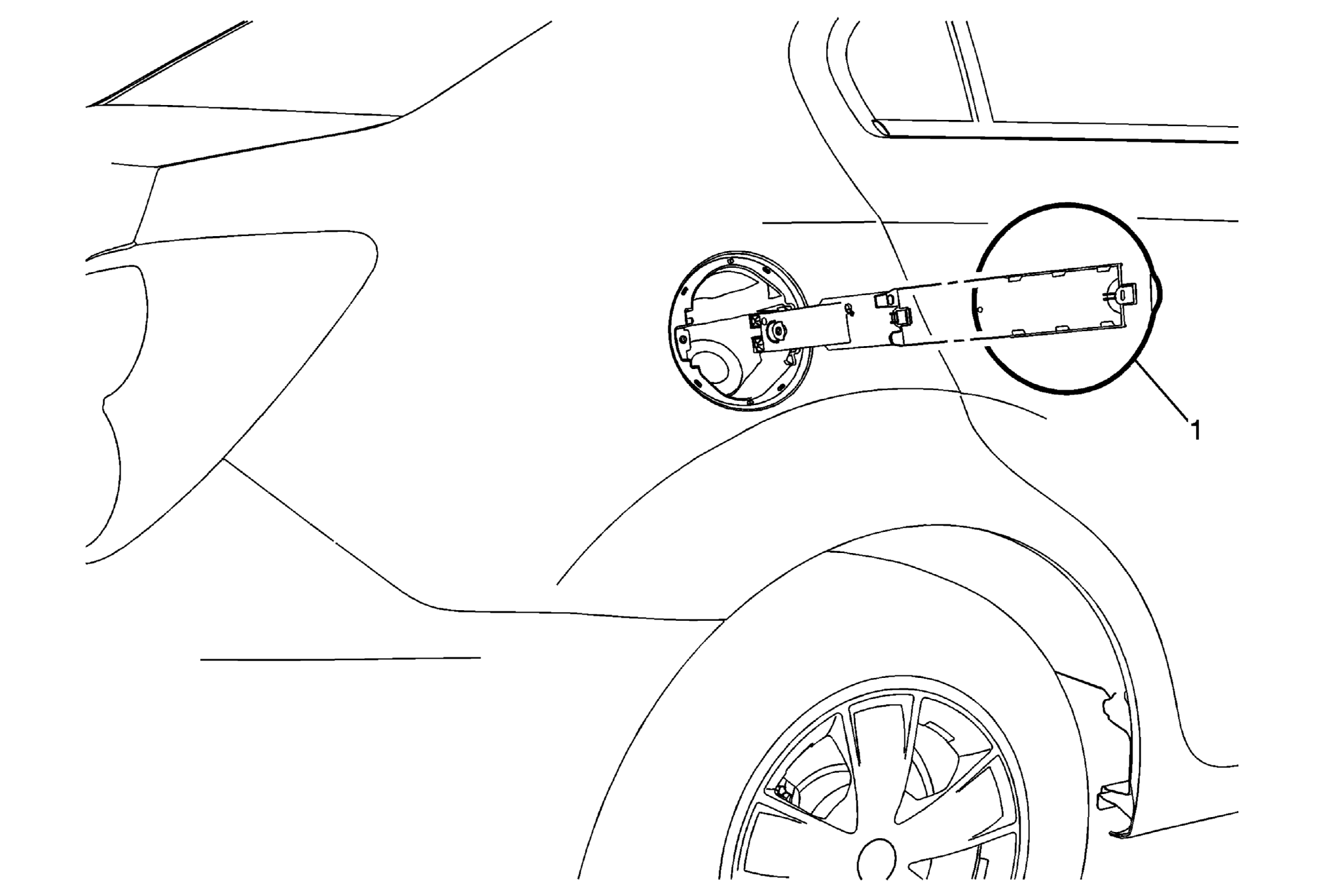

Fig 1: Fuel Tank Filler Door
GM2469707Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Filler Door Replacement

Callout Component Name
1 Fuel Tank Filler Door
Procedure
Position the fuel tank filler door to the full open position. Using light outward sliding pressure on the filler door, release the retainer on the fuel tank filler door from the hinge.
