Rear Wheelhouse Liner Replacement (Sedan - Left)
Rear Wheelhouse Liner Replacement (Sedan - Left)

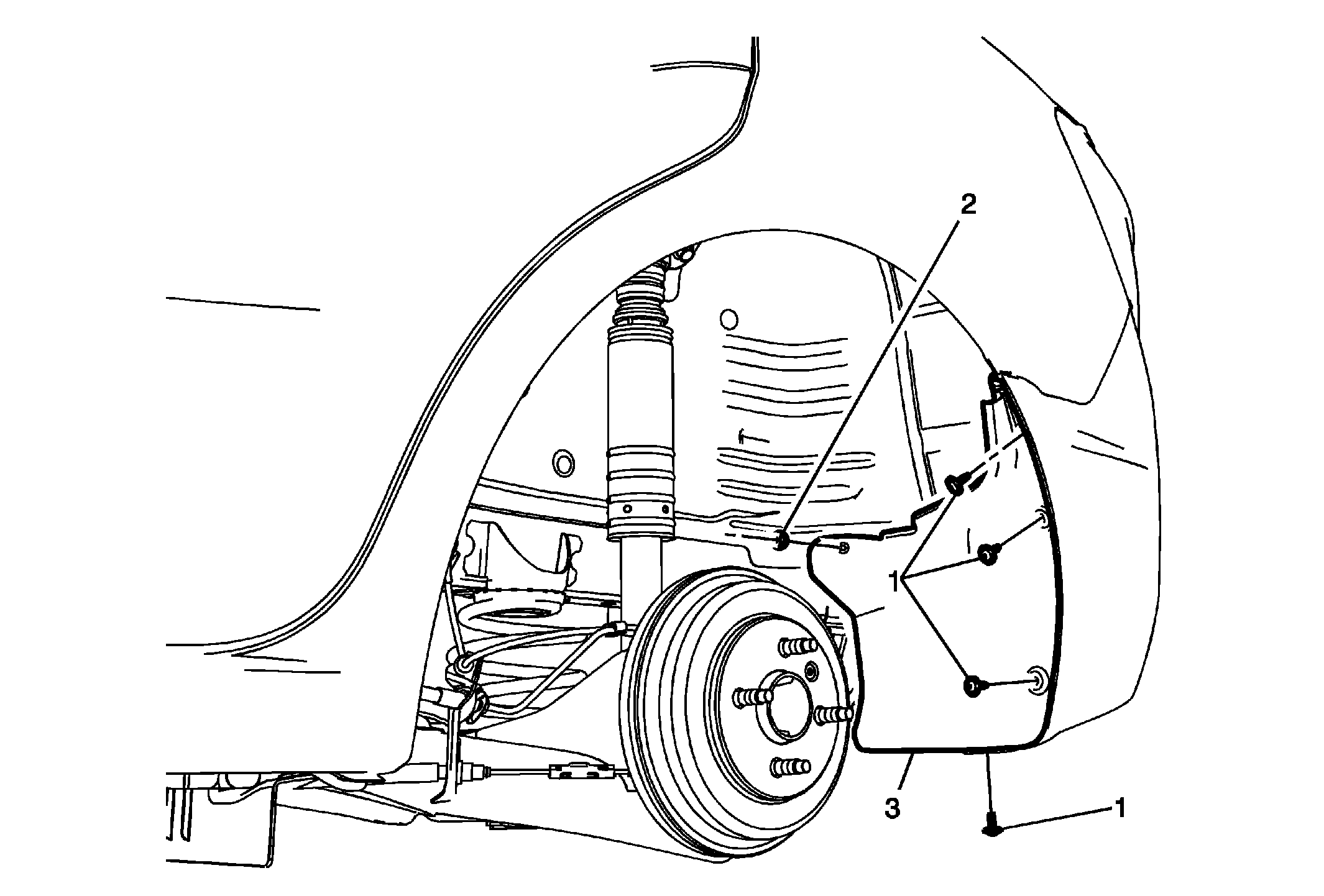

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Rear Wheelhouse Panel Liner Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Rear Wheelhouse Panel Liner Push-In Retainer |
| 3 | Rear Wheelhouse Panel Liner |
