Instrument Cluster Replacement

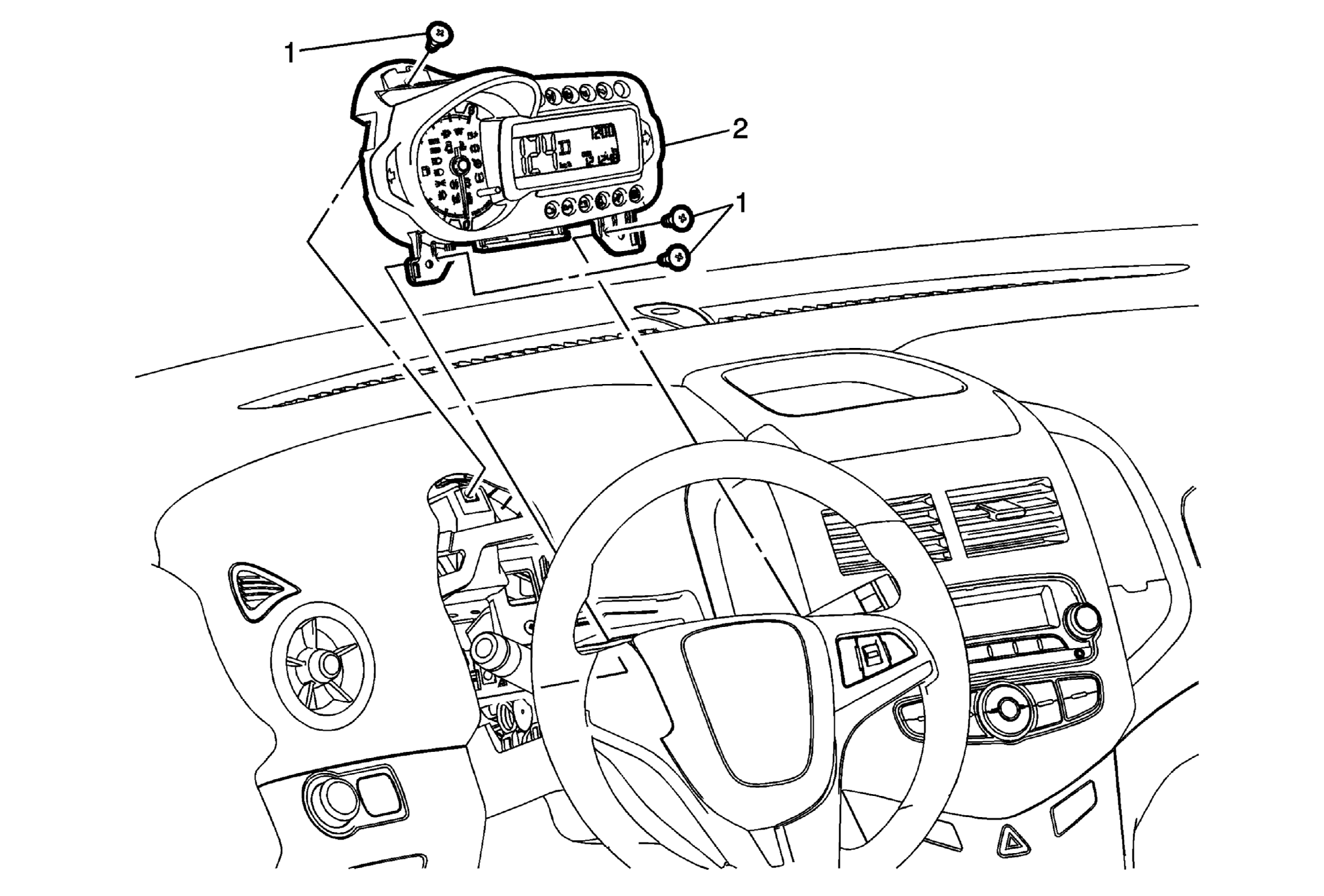

Fig 1: Instrument Cluster
GM2497973Courtesy of GENERAL MOTORS COMPANY
Instrument Cluster Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel cluster upper bezel. Refer to Instrument Cluster Upper Bezel Replacement .
  2. Remove the instrument panel steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
1 Instrument Cluster Fasteners (Qty: 3)
CAUTION:

Refer to Fastener Caution .
2 Instrument Cluster Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for programming and set up information.
