Steering Column Upper Trim Cover Replacement

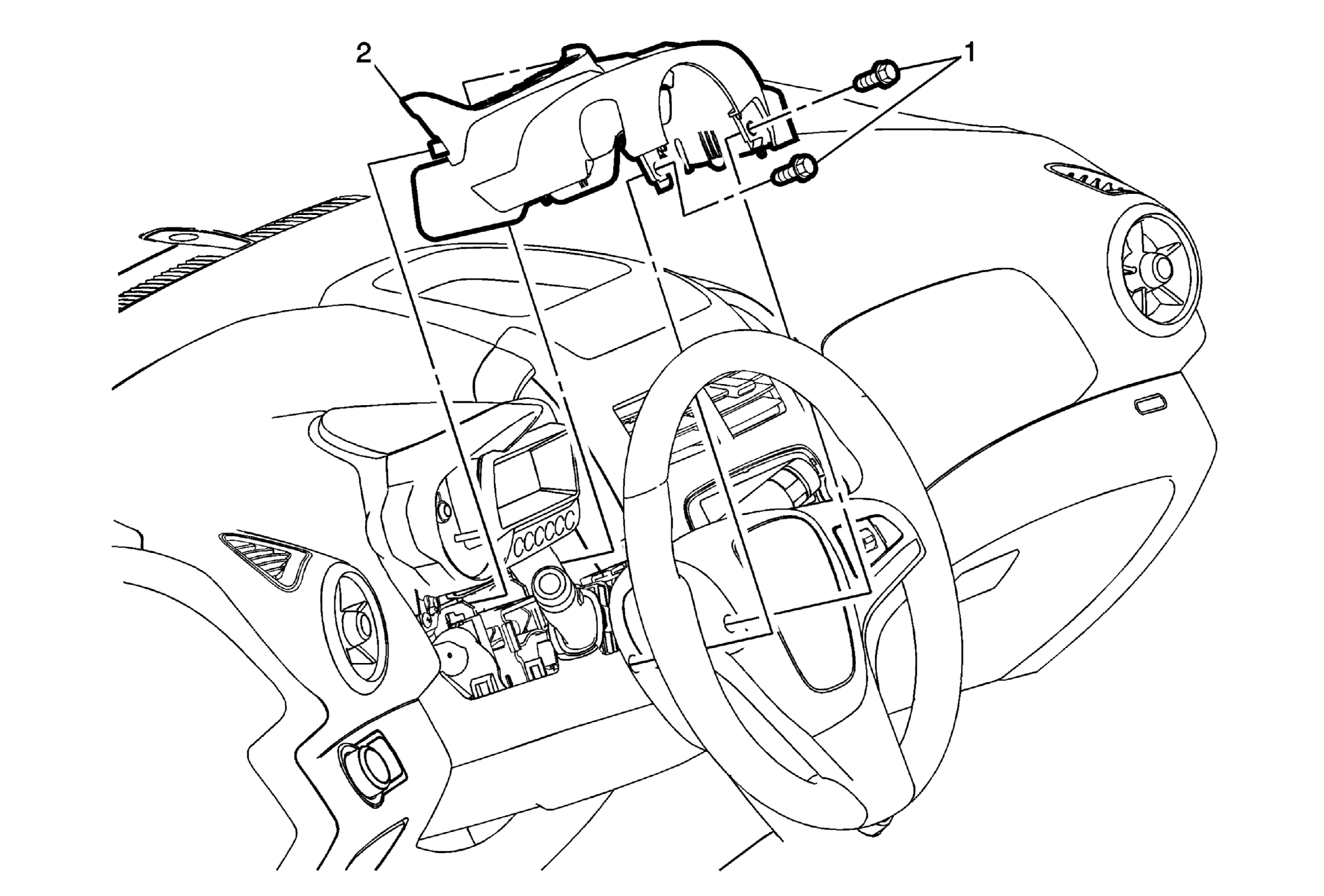

Fig 1: Steering Column Upper Trim Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Steering Column Upper Trim Cover Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Turn the steering wheel to the right and to the left in order to gain access to the fasteners.
2	Instrument Panel Steering Column Upper Trim Cover Assembly Procedures Use a flat bladed plastic trim tool along the right and left sides of the trim panel in order to release the retainers securing the upper trim cover to the lower trim cover. Lift the upper trim cover upward and rearward in order to release the retainers along the front forward edge of the upper trim cover.

Callout

Component Name

Instrument Panel Steering Column Upper Trim Cover Fasteners (Qty: 2)

CAUTION:

Procedure
Turn the steering wheel to the right and to the left in order to gain access to the fasteners.

Instrument Panel Steering Column Upper Trim Cover Assembly

Procedures

Use a flat bladed plastic trim tool along the right and left sides of the trim panel in order to release the retainers securing the upper trim cover to the lower trim cover.
Lift the upper trim cover upward and rearward in order to release the retainers along the front forward edge of the upper trim cover.
