Instrument Cluster Upper Bezel Replacement

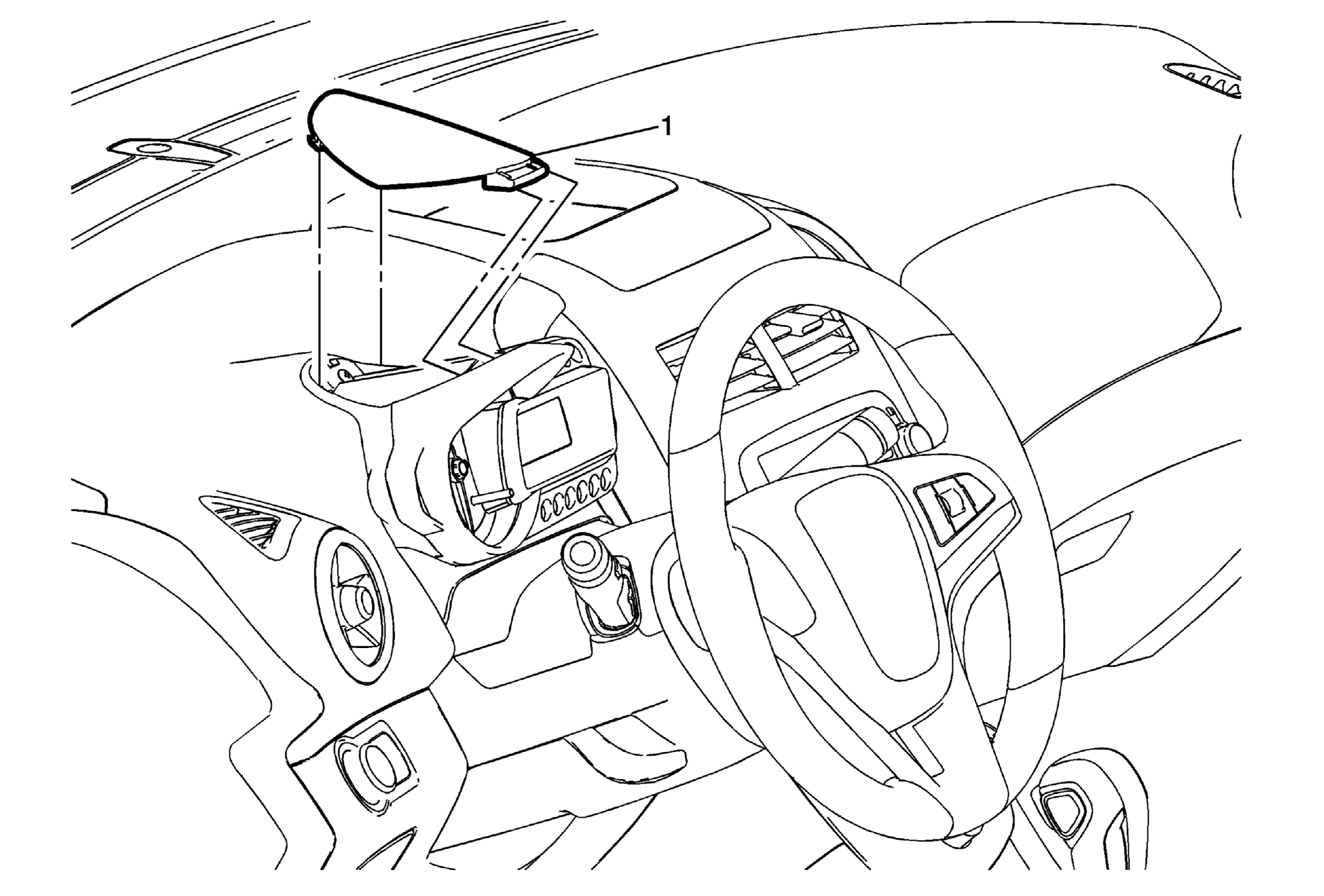

Courtesy of GENERAL MOTORS COMPANY Instrument Cluster Upper Bezel Replacement
| Callout |
Component Name |
| 1 |
Instrument Panel Cluster Upper Bezel
Procedures
Use a flat bladed plastic trim tool in order to disengage the retainers securing the instrument panel cluster upper bezel to the instrument cluster assembly. |
