Liftgate Wiring Harness Replacement

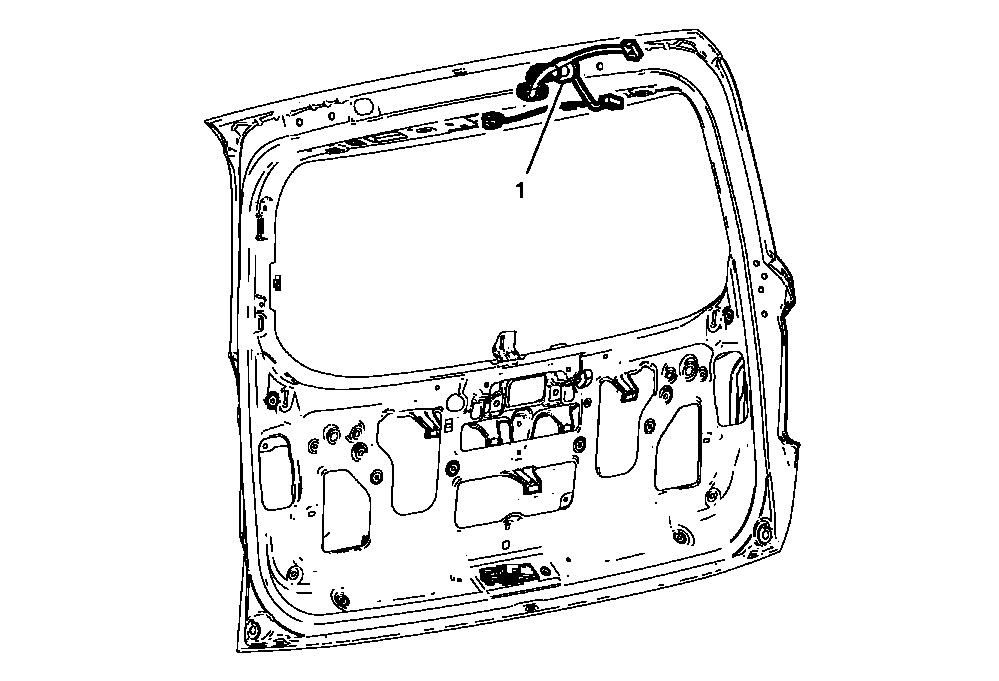

Fig 1: Liftgate Wiring Harness
GM2449886Courtesy of GENERAL MOTORS COMPANY
Liftgate Wiring Harness Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .
  2. Remove the liftgate upper trim finish panel. Refer to Liftgate Upper Trim Finish Panel Replacement .
  3. Remove the backup lamps. Refer to Backup Lamp Replacement .
  4. Partially loosen the headliner trim panel. Refer to Headlining Trim Panel Replacement (without Sunroof) , Headlining Trim Panel Replacement (with Sunroof) .
1 Liftgate Wiring Harness

Procedure

  1. Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection (without Start/Stop System) .
  2. Disconnect electrical connectors as needed.
