Liftgate Trim Finish Panel Replacement

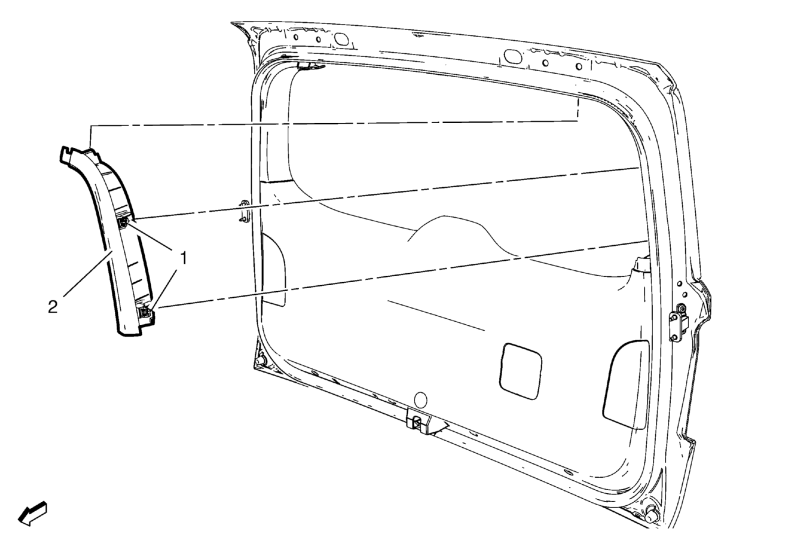

Fig 1: Liftgate Trim Finish Panel

Courtesy of GENERAL MOTORS COMPANY

Liftgate Trim Finish Panel Replacement

Callout	Component Name
Preliminary Procedures  Remove the liftgate upper trim finish panel. Refer to Liftgate Upper Trim Finish Panel Replacement .
1	Liftgate Trim Finish Panel Clip (Qty: 2)
2	Liftgate Trim Finish Panel
