Backup Lamp Replacement

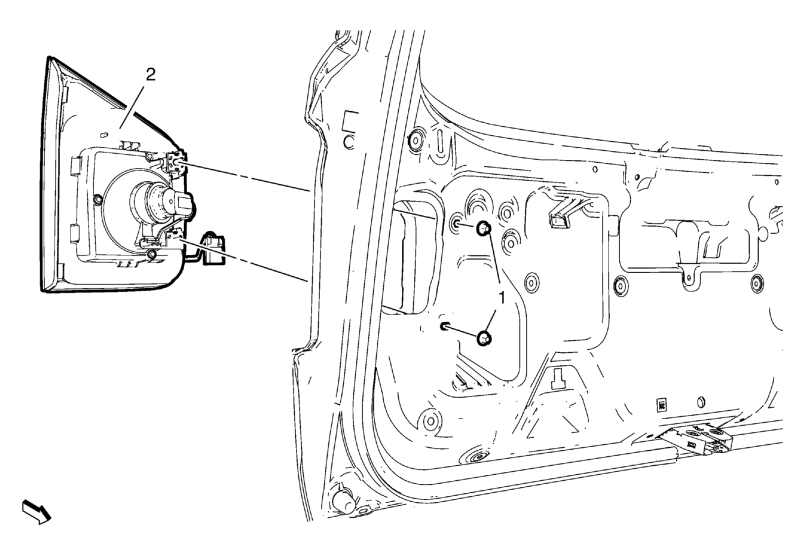

Fig 1: Backup Lamp & Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate lower trim finish panel service flap. Refer to Liftgate Lower Trim Finish Panel Replacement .
1	Backup Lamp Nut (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Backup Lamp Procedure Disconnect electrical connector. Replace the bulb, as needed.

Callout

Component Name

Preliminary Procedure
Remove the liftgate lower trim finish panel service flap. Refer to Liftgate Lower Trim Finish Panel Replacement .

Backup Lamp Nut (Qty: 2)

CAUTION:

Backup Lamp

Procedure
