Liftgate Jumper Wiring Harness Replacement

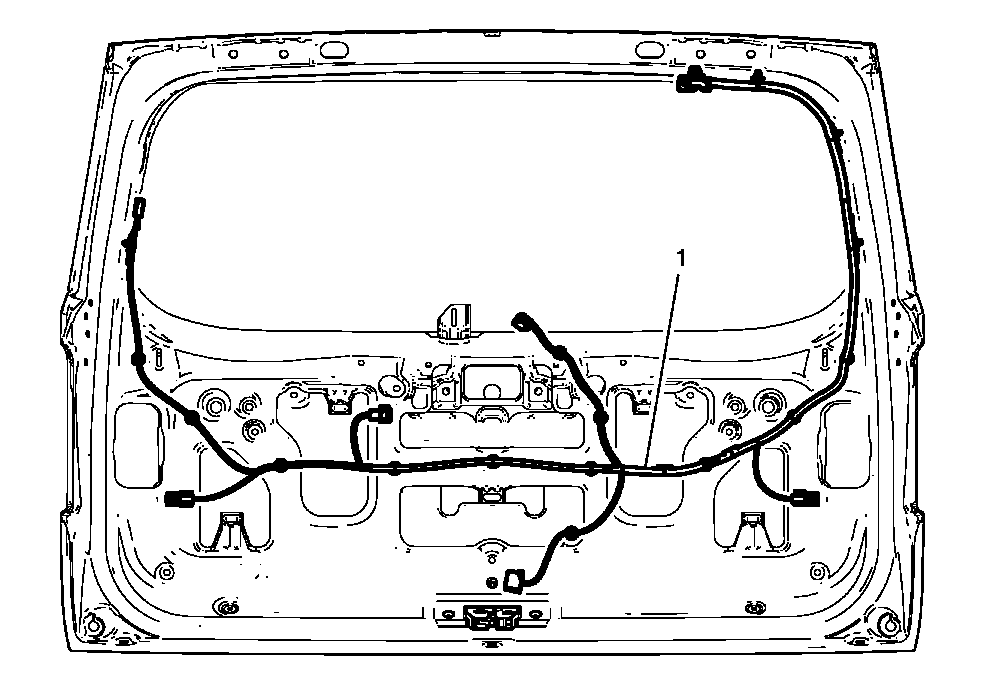

Fig 1: Liftgate Jumper Wiring Harness
GM2373521Courtesy of GENERAL MOTORS COMPANY
Liftgate Jumper Wiring Harness Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .
  2. Remove the liftgate upper trim finish panel. Refer to Liftgate Upper Trim Finish Panel Replacement .
  3. Remove the backup lamps. Refer to Backup Lamp Replacement .
1 Liftgate Jumper Wiring Harness

Procedure

  1. Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection (without Start/Stop System) .
  2. Disconnect the electrical connectors as needed.
