Front Fender Front Lower Bracket Replacement

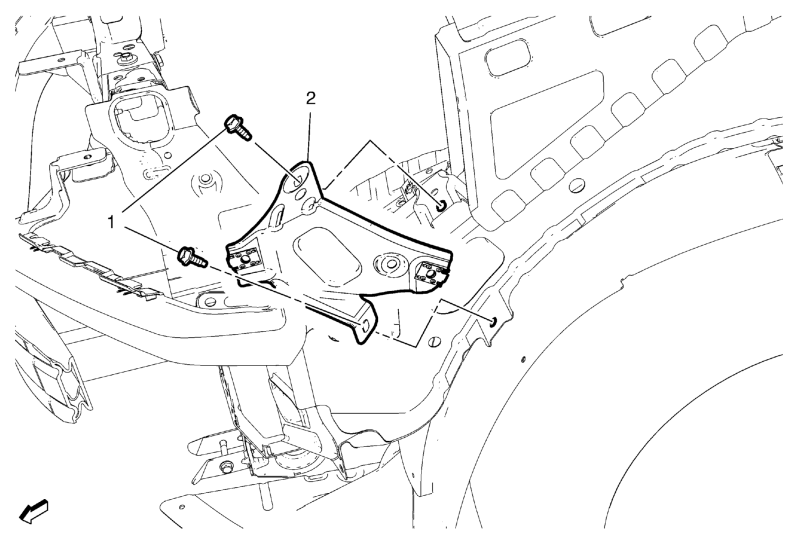

Fig 1: Front Fender Front Lower Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove front bumper fascia. Refer to Front Bumper Fascia Removal and Installation . Remove headlamps. Refer to Headlamp Replacement . Remove front fender. Refer to Front Fender Replacement .
1	Front Fender Front Lower Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Fender Front Lower Bracket

Callout

Component Name

Preliminary Procedures

Remove front bumper fascia. Refer to Front Bumper Fascia Removal and Installation .
Remove headlamps. Refer to Headlamp Replacement .
Remove front fender. Refer to Front Fender Replacement .

Front Fender Front Lower Bracket Bolt (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Front Fender Front Lower Bracket
