Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

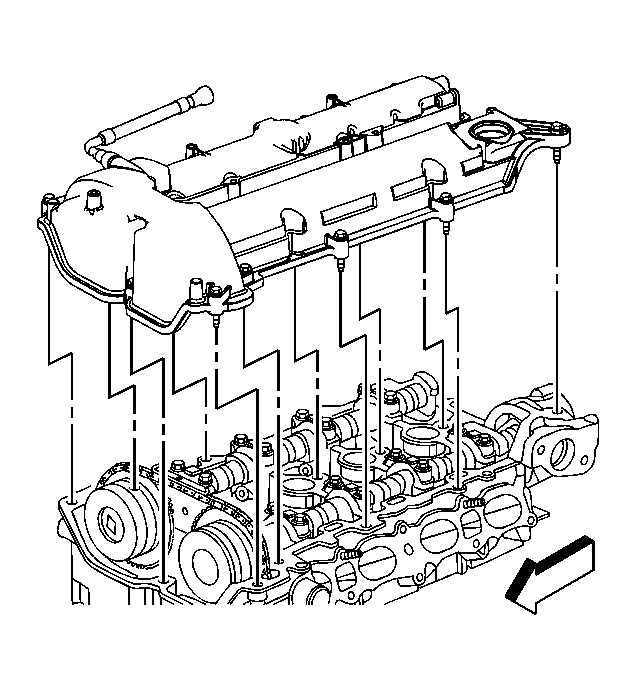

Fig 1: Camshaft Cover

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the camshaft cover and bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

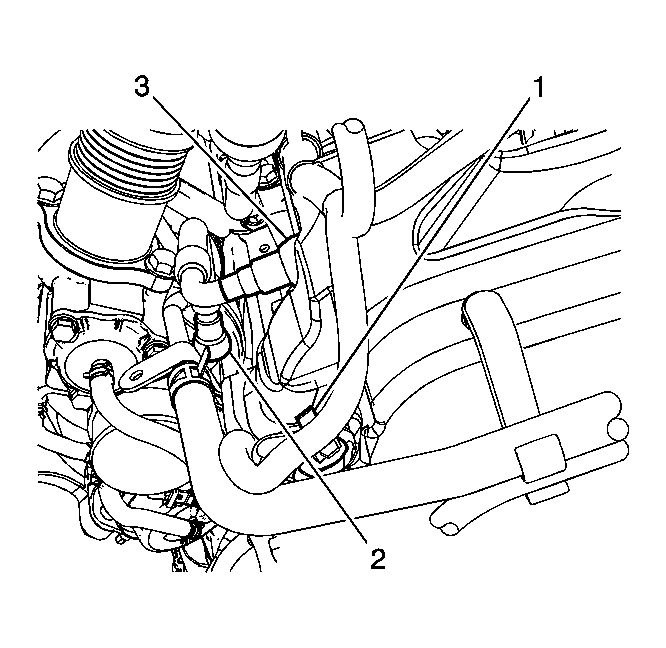

Fig 2: Identifying Fuel Line

Courtesy of GENERAL MOTORS CORP.

Connect the fuel line (1) to the valve cover.

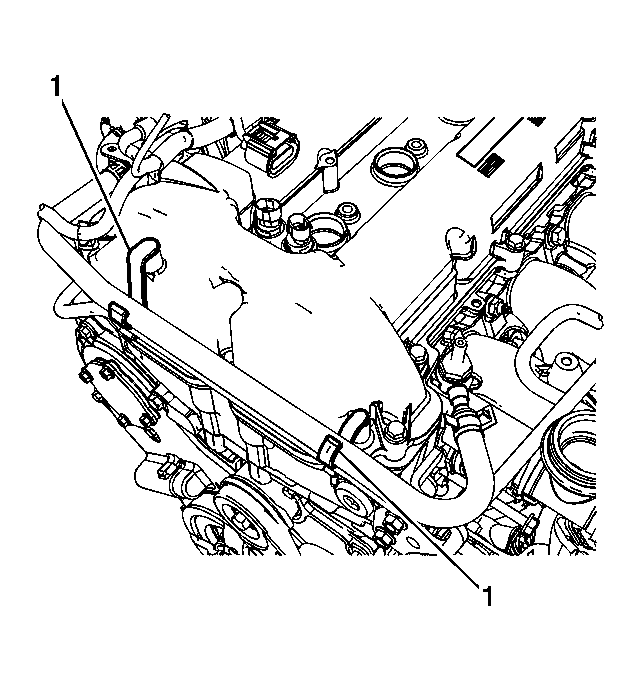

Fig 3: Engine Wiring Harness Clips

Courtesy of GENERAL MOTORS CORP.

Install the engine wiring harness clips (1) from the camshaft cover.

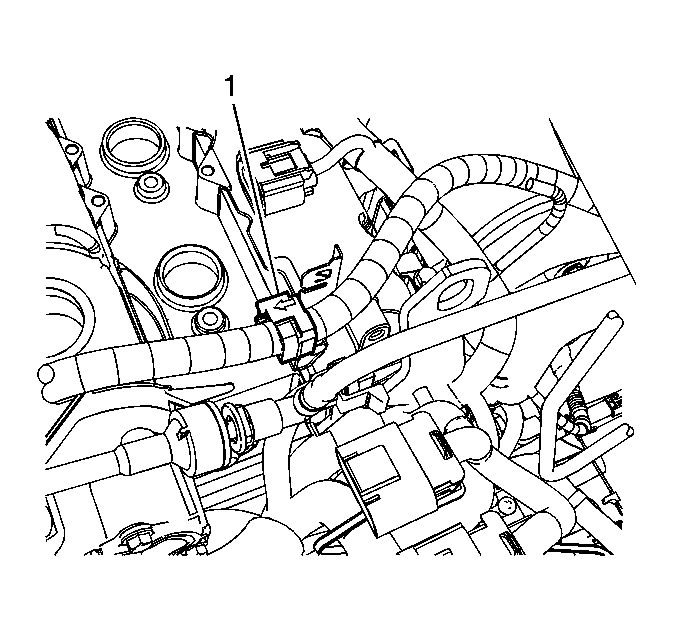

Fig 4: Identifying Engine Wiring Harness Clip & PCV Hose

Courtesy of GENERAL MOTORS CORP.

Connect the PCV hose (2). Refer to Metal Collar Quick Connect Fitting Service .
Install the engine wiring harness clip (1) to the turbocharger.

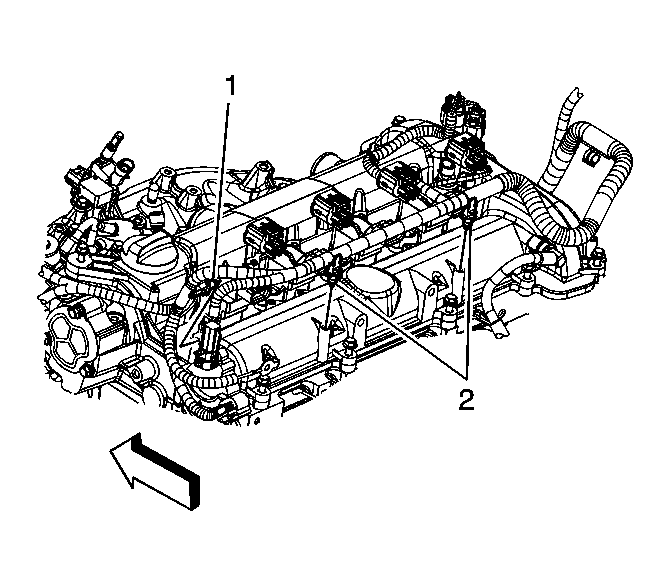

Fig 5: Identifying Engine Wiring Harness Clips & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the ignition coils. Refer to Ignition Coil Replacement .
Connect the engine wiring harness electrical connector from the EVAP canister purge solenoid valve.
Install the engine harness clips (1, 2) to the camshaft cover.

Fig 6: Identifying Intake & Exhaust CMP Actuators

Courtesy of GENERAL MOTORS CORP.

Connect the engine wiring harness intake (2) and exhaust (1) electrical connectors to the camshaft position actuator solenoid valves.
Install the charge air cooler inlet pipe. Refer to Charge Air Cooler Inlet Pipe Replacement .
Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
Install the air cleaner. Refer to Air Cleaner Assembly Replacement .
