Air Cleaner Assembly Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

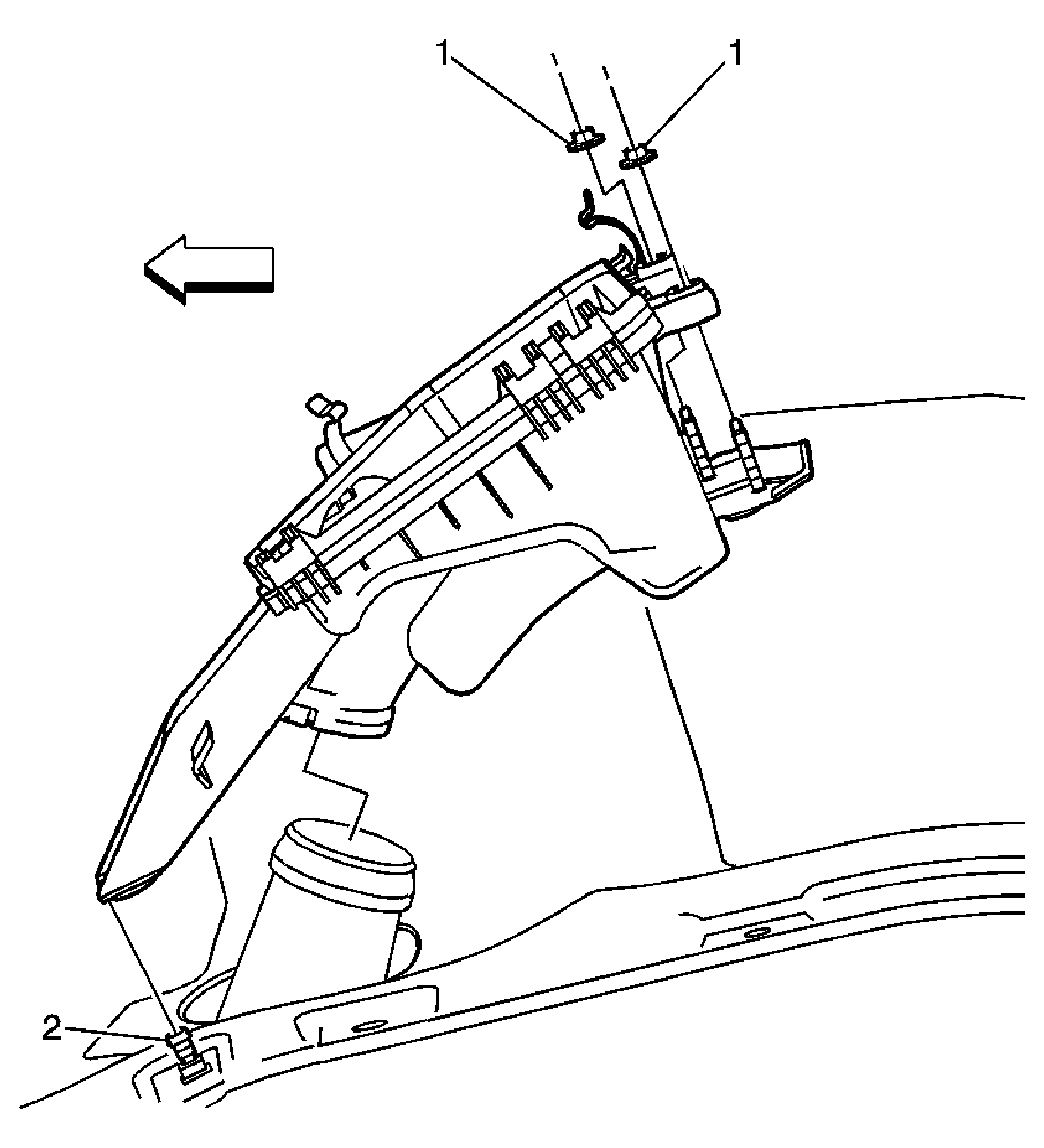

Fig 1: View Of Air Cleaner Assembly Retainer Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the mass air flow (MAF) sensor. Refer to Mass Airflow Sensor Replacement . Remove the air cleaner element. Refer to Air Cleaner Element Replacement . Disconnect the air cleaner outlet duct from the air cleaner housing. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Housing Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 1.5 N.m (13 lb in)
2	Air Cleaner Retainer

Callout

Component Name

Preliminary Procedures

Remove the mass air flow (MAF) sensor. Refer to Mass Airflow Sensor Replacement .
Remove the air cleaner element. Refer to Air Cleaner Element Replacement .
Disconnect the air cleaner outlet duct from the air cleaner housing. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Housing Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 1.5 N.m (13 lb in)

Air Cleaner Retainer
