Ignition Coil Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

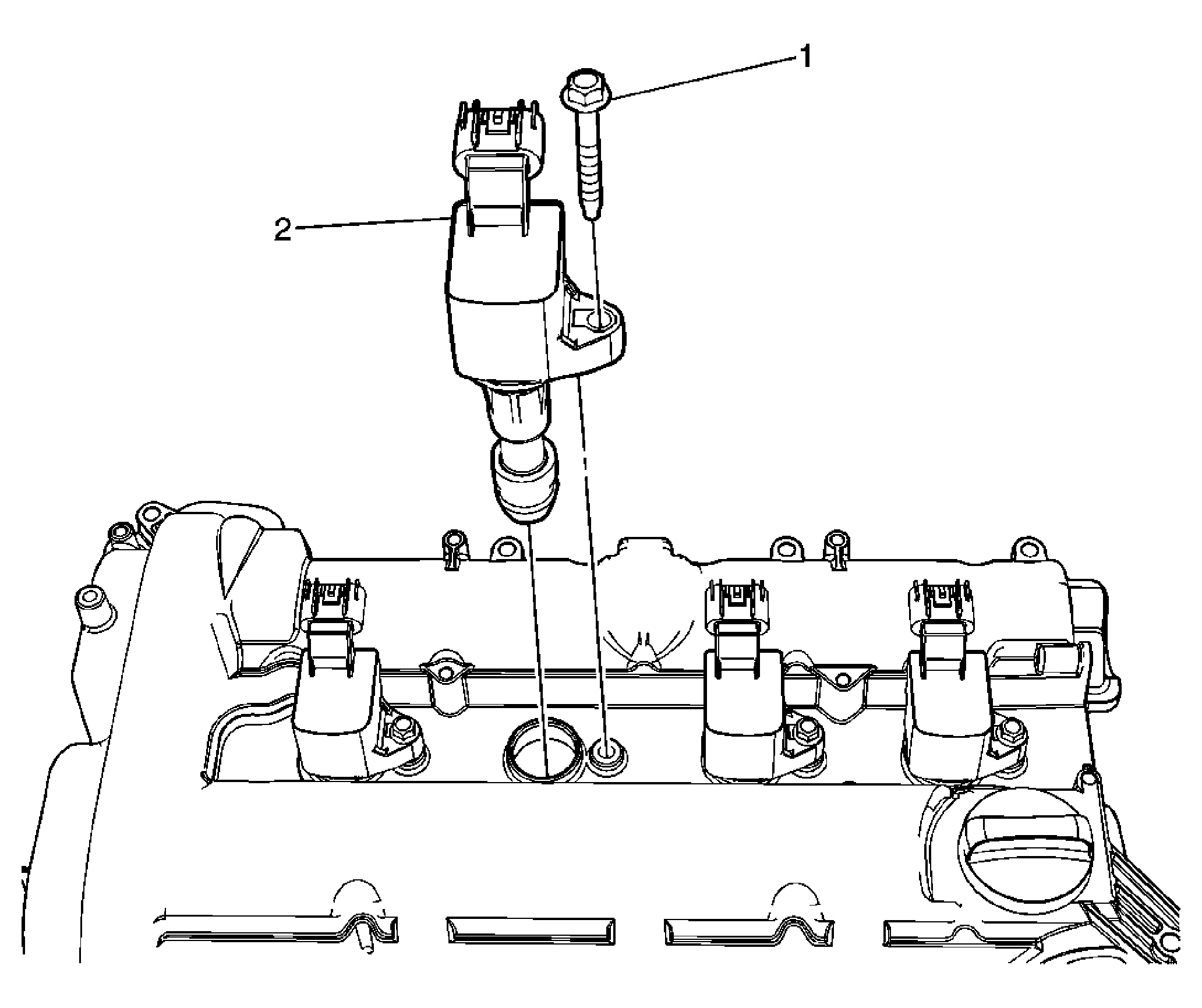

Fig 1: View Of Ignition Coil

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil Bolt CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Ignition Coil Procedure: Disconnect the electrical connector.
