Rear Side Door Outside Handle Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

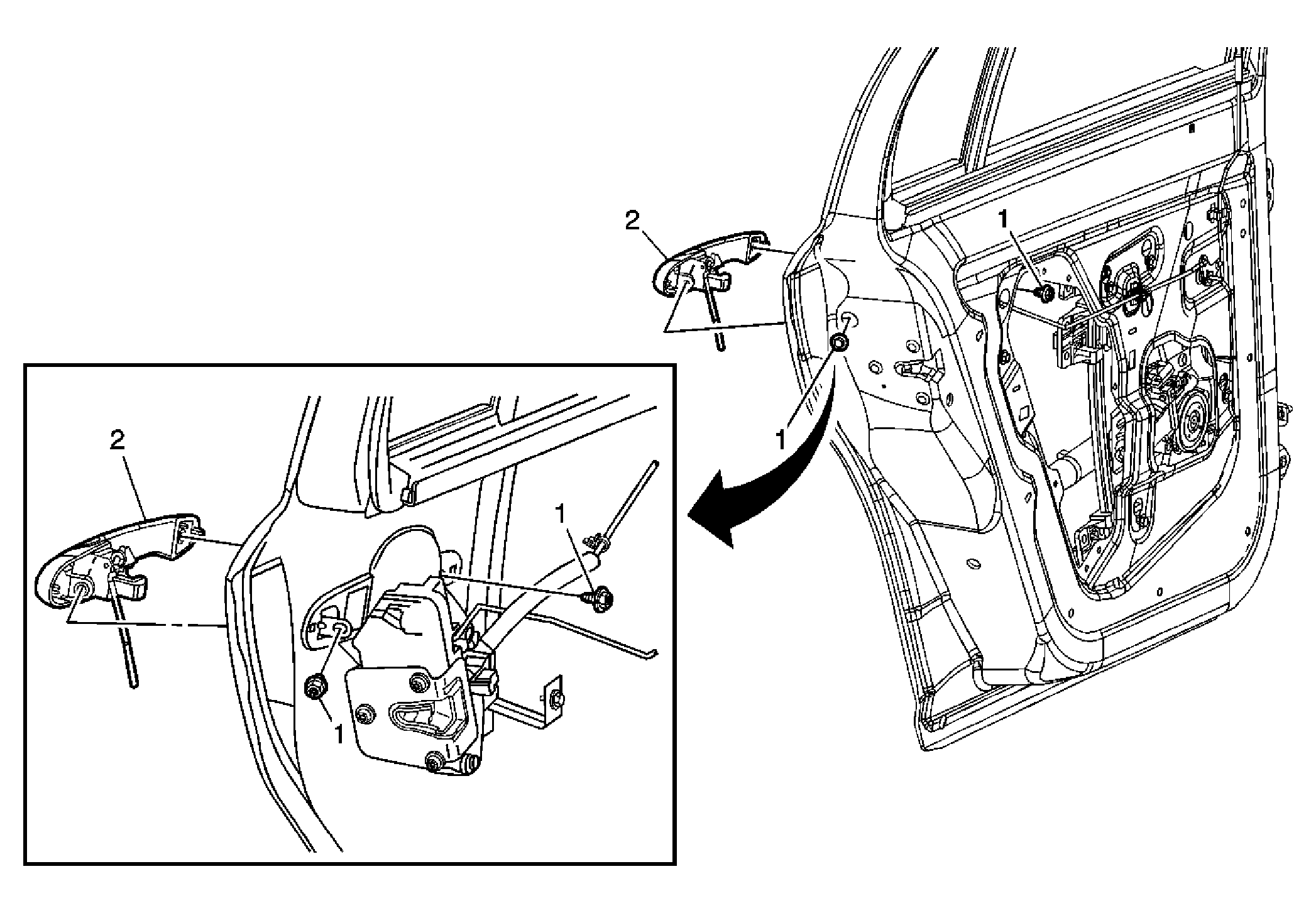

Fig 1: Door Handle Replacement - Rear Outside

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Rear Side Door Outside Handle Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Rear Side Door Outside Handle Assembly Tip: Disconnect the outside handle rod from the lock assembly before removing the handle.

Callout

Component Name

Preliminary Procedures

Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .

Rear Side Door Outside Handle Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Rear Side Door Outside Handle Assembly
Tip: Disconnect the outside handle rod from the lock assembly before removing the handle.
