Rear Side Door Locking Rod Bellcrank Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

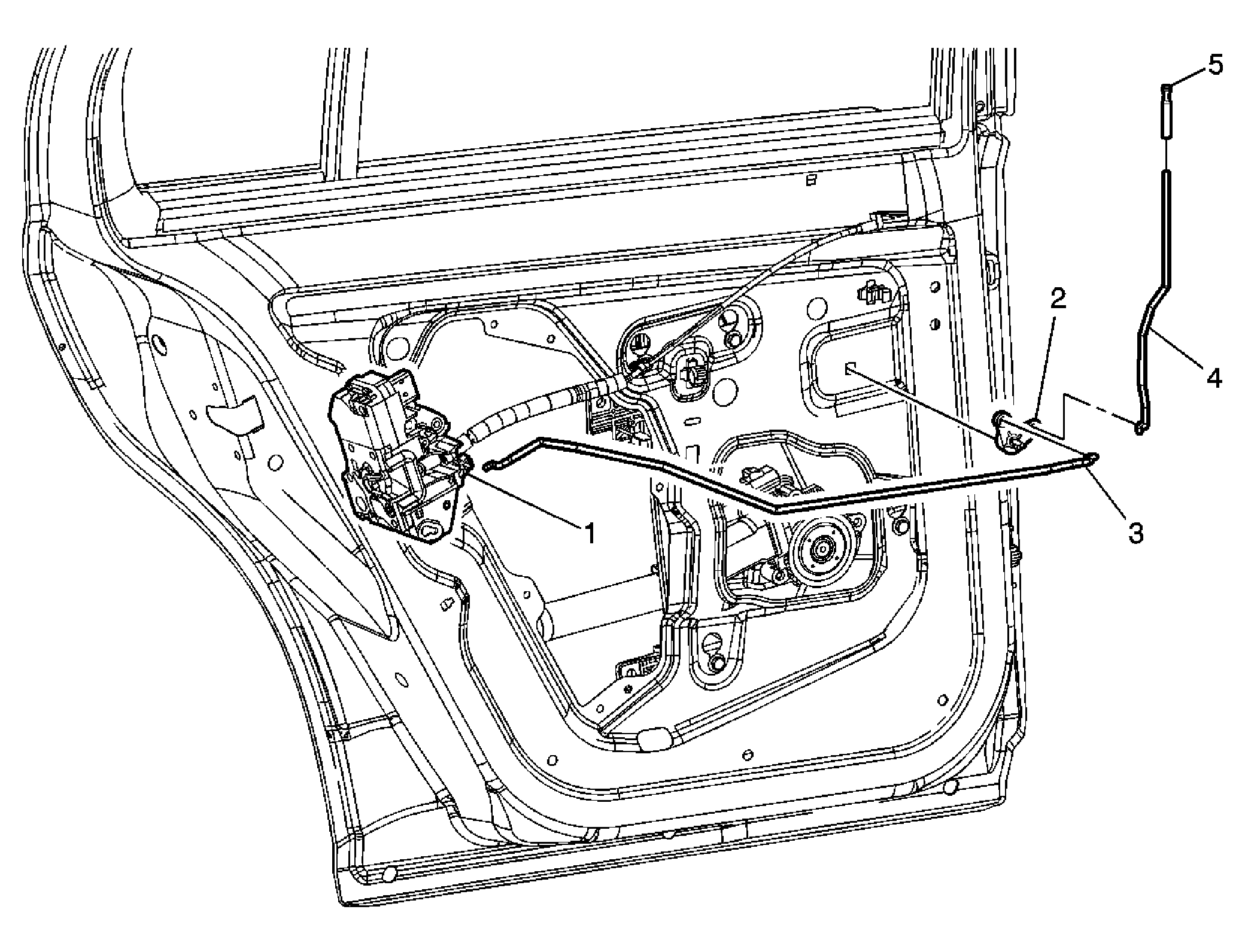

Fig 1: Door Locking Rod/Bellcrank Replacement - Rear
GM1548958Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement .
  2. Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1 Rear Side Door Lock Assembly
Refer to Rear Side Door Lock Replacement .
2 Rear Side Door Locking Rod Bellcrank Assembly
Tip:  Disconnect the locking rods from the bellcrank.
3 Rear Side Door Locking Rod
4 Rear Side Door Locking Rod
5 Rear Side Door Locking Rod Cap
