Rear Side Door Inside Handle Cable Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

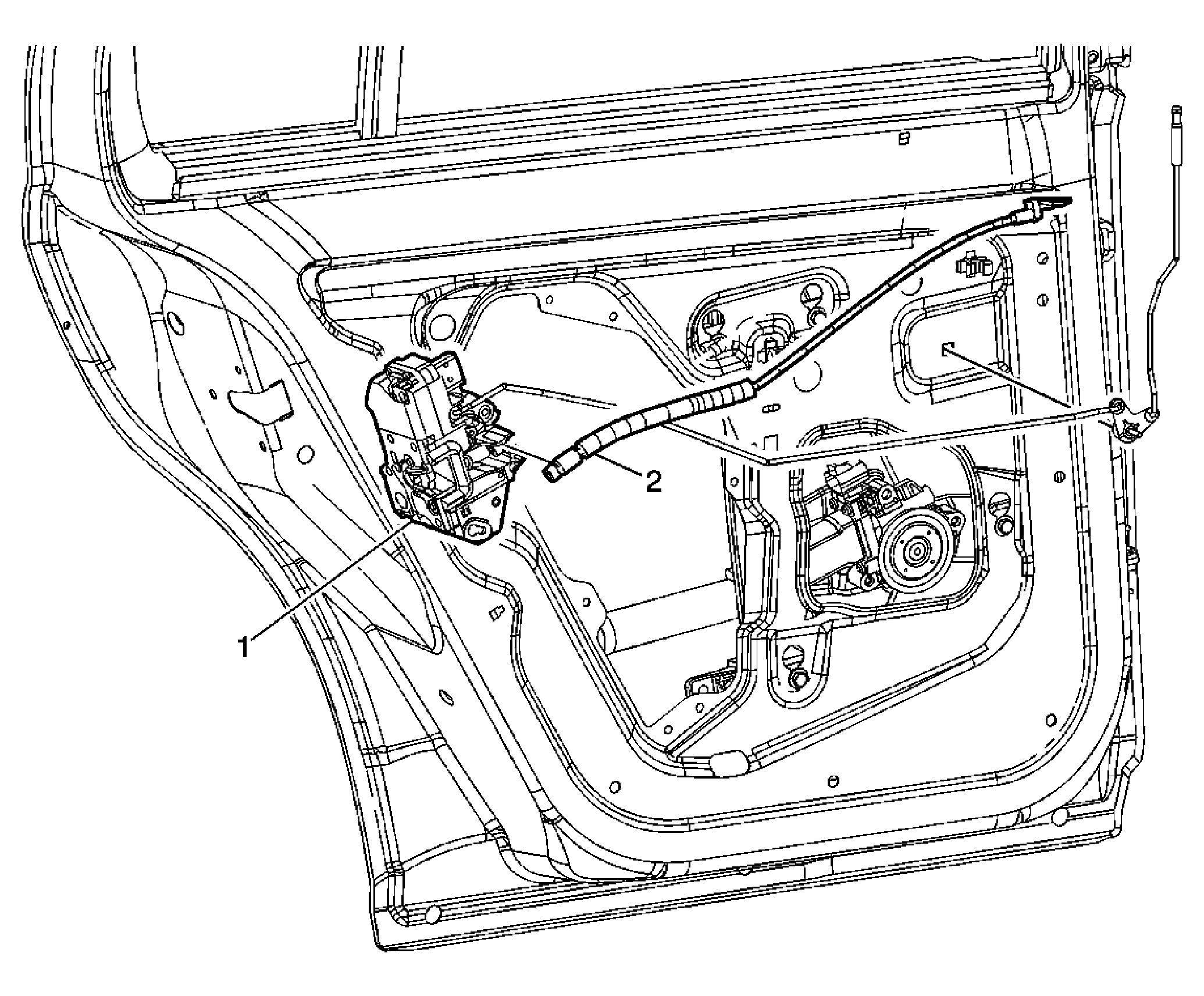

Fig 1: Door Handle Cable Replacement - Rear Inside

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Front Side Door Lock Assembly Refer to Rear Side Door Lock Replacement .
2	Front Side Door Inside Handle Cable Assembly

Callout

Component Name

Preliminary Procedures

Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .

Front Side Door Lock Assembly
Refer to Rear Side Door Lock Replacement .

Front Side Door Inside Handle Cable Assembly
