Rear Side Door Window Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

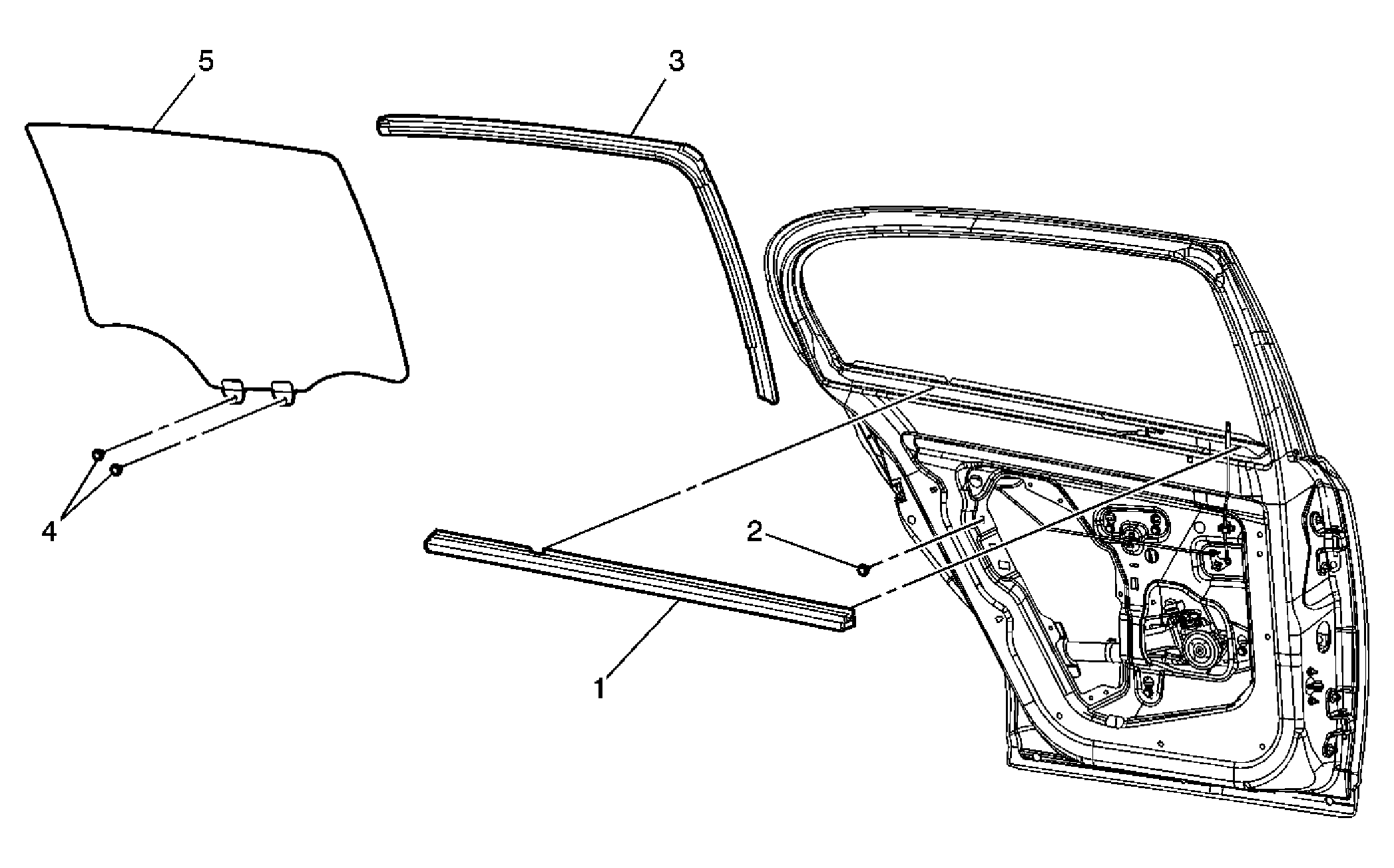

Fig 1: Window Replacement - Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Rear Side Door Window Inner Sealing Strip
2	Rear Side Door Stationary Window Screw CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
3	Rear Side Door Window Weatherstrip Assembly Tip: Disengage the window and weatherstrip from the door and stationary window.
4	Rear Side Door Window Bolt (Qty: 2) Tighten: 10 N.m (89 lb in)
5	Rear Side Door Window Tip: Tilt the window inward and remove through the inside of the side door window opening.
