Seat Belt Retractor Pretensioner Replacement - Front (Coupe)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

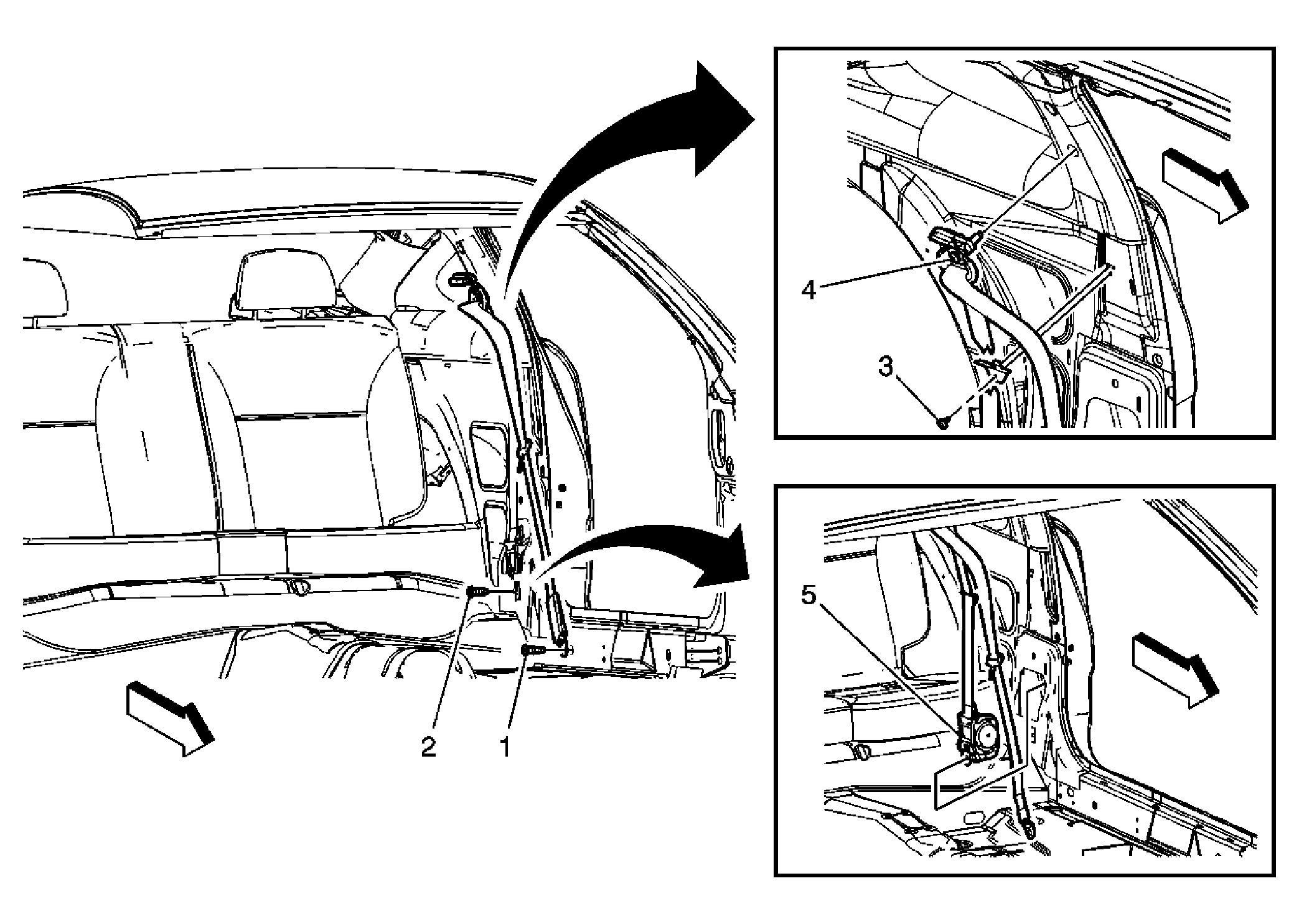

Fig 1: Front Seat Belt Retractor Pretensioner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disable the SIR. Refer to SIR Disabling and Enabling .
1	Seat Belt Anchor Bolt CAUTION: Refer to Fastener Caution . Procedure Move the seat to the full forward position. Pull the seat belt anchor cover upward to gain access to the bolt. Tighten: 45 N.m (33 lb ft)
2	Seat Belt Retractor Bolt Tip: Remove the body lock pillar lower trim panel to gain access to the bolt. Refer to Body Lock Pillar Garnish Lower Molding Replacement (Coupe) or Body Lock Pillar Garnish Lower Molding Replacement (Sedan) . Tighten: 45 N.m (33 lb ft)
3	Front Seat Belt Guide Screw Tighten: 9 N.m (80 lb in)
4	Seat Belt Adjuster Bolt Tip: Flip open the seat belt adjuster cover to gain access to the bolt. Tighten: 45 N.m (33 lb ft)
5	Front Seat Belt Retractor Assembly Procedure Disconnect the belt tension sensor electrical connector. Remove the seat belt assembly from the seat belt guide attached to the head restraint.
