Front Seat Cushion Cover and Pad Replacement (ADM)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

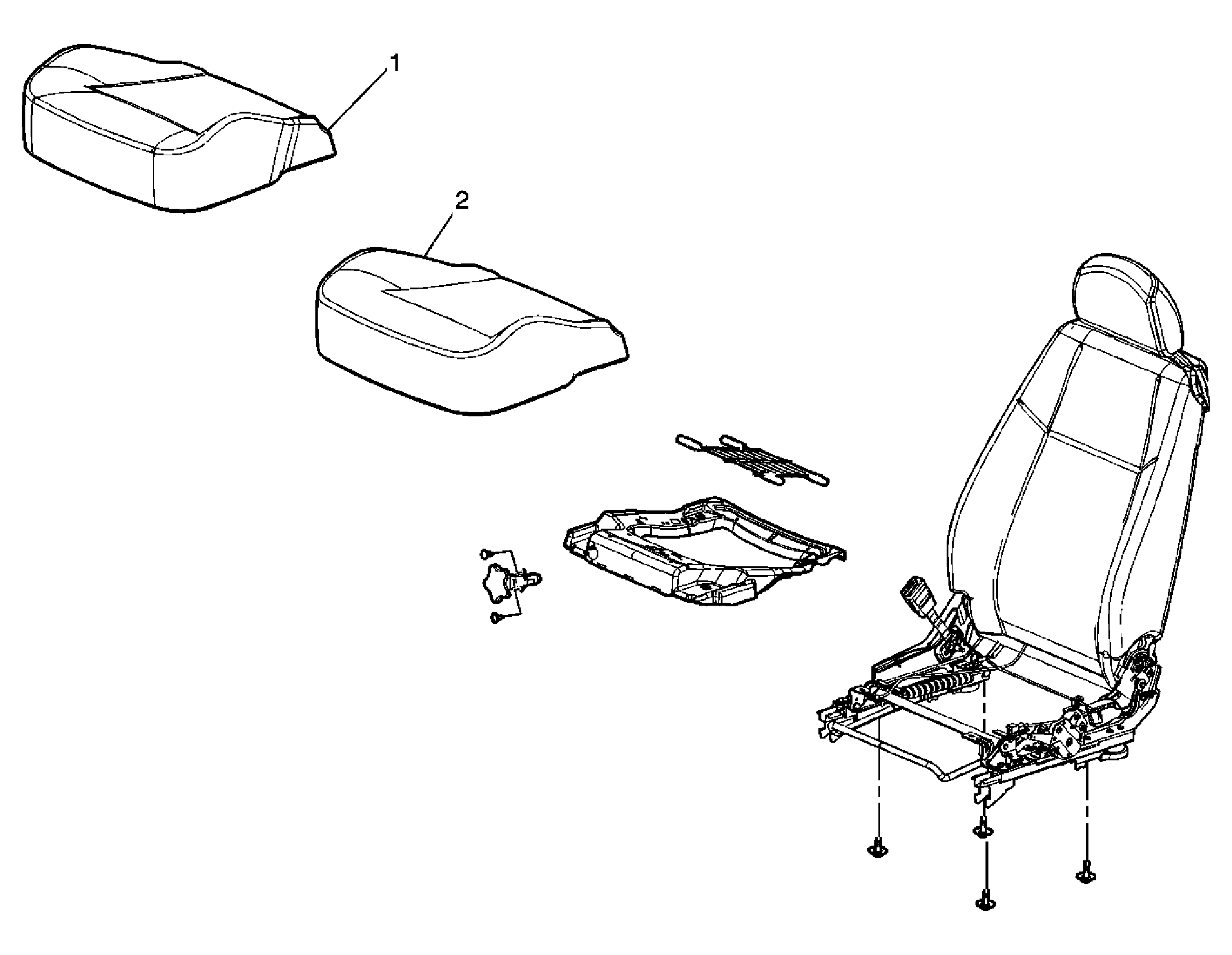

Fig 1: Front Seat Cushion Cover and Pad (ADM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the seat cushion frame. Refer to Driver or Passenger Seat Cushion Frame Replacement .
1	Seat Cushion Cover Procedure Disconnect the seat cushion cover J-channel from the seat cushion frame. Disconnect the electrical connectors.
2	Seat Cushion Pad

Callout

Component Name

Preliminary Procedures

Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the seat cushion frame. Refer to Driver or Passenger Seat Cushion Frame Replacement .

Seat Cushion Cover

Procedure

Disconnect the seat cushion cover J-channel from the seat cushion frame.
Disconnect the electrical connectors.

Seat Cushion Pad
