Front Side Door Trim Panel Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

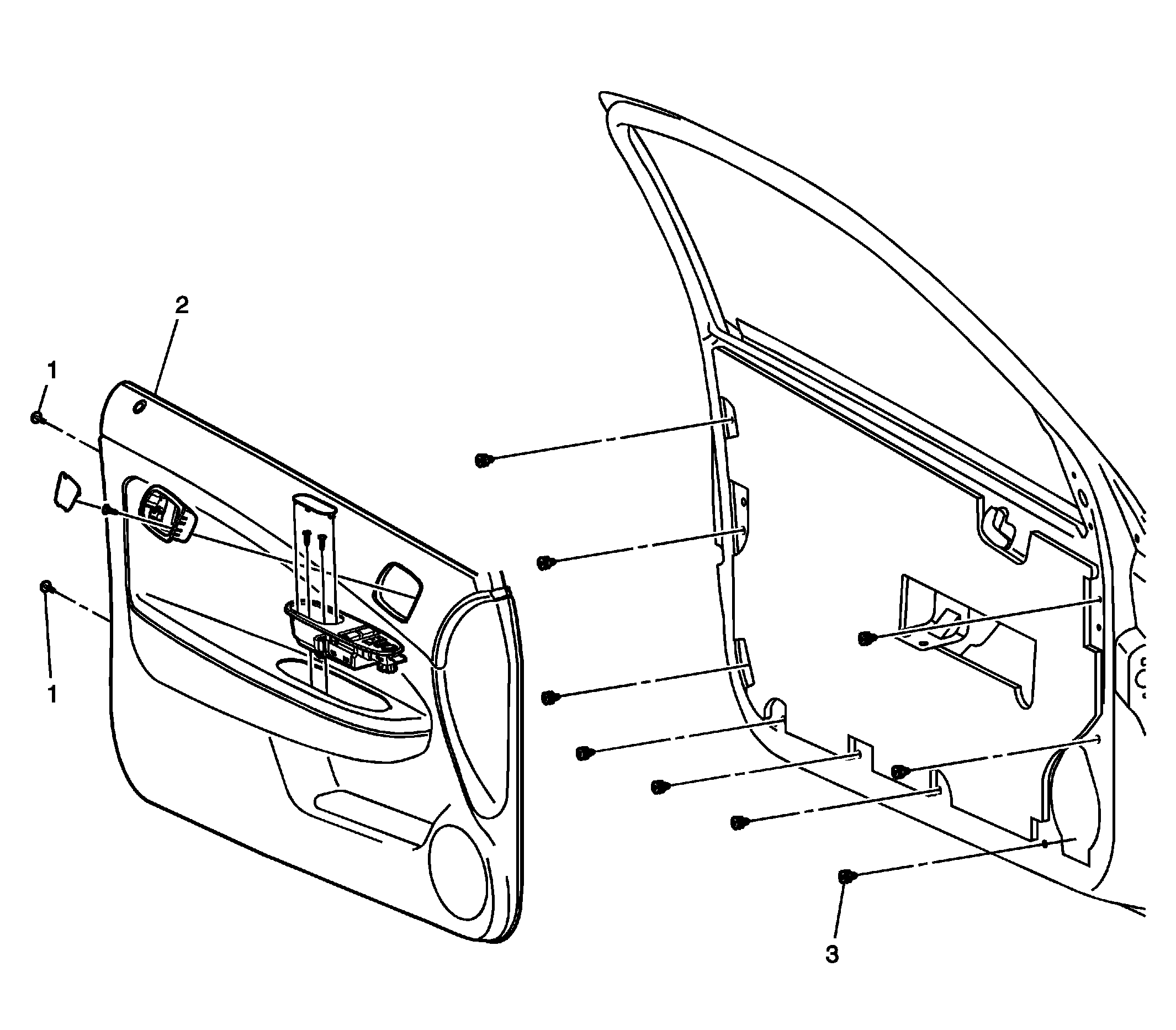

Fig 1: Trim Panel Replacement - Side Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the upper extension. Refer to Upper Extension Trim Panel Replacement . Remove the armrest pull cup. Refer to Armrest Pull Cup Replacement . Remove the manual window regulator handle if equipped. Refer to Door Window Regulator Handle Replacement . Disconnect the inside door handle cable. Refer to Door Inside Handle Replacement .
1	Push Pins (Qty: 2)
2	Panel Assembly, Side Door Trim
3	Retainer, Side Door Trim
