Upper Extension Trim Panel Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

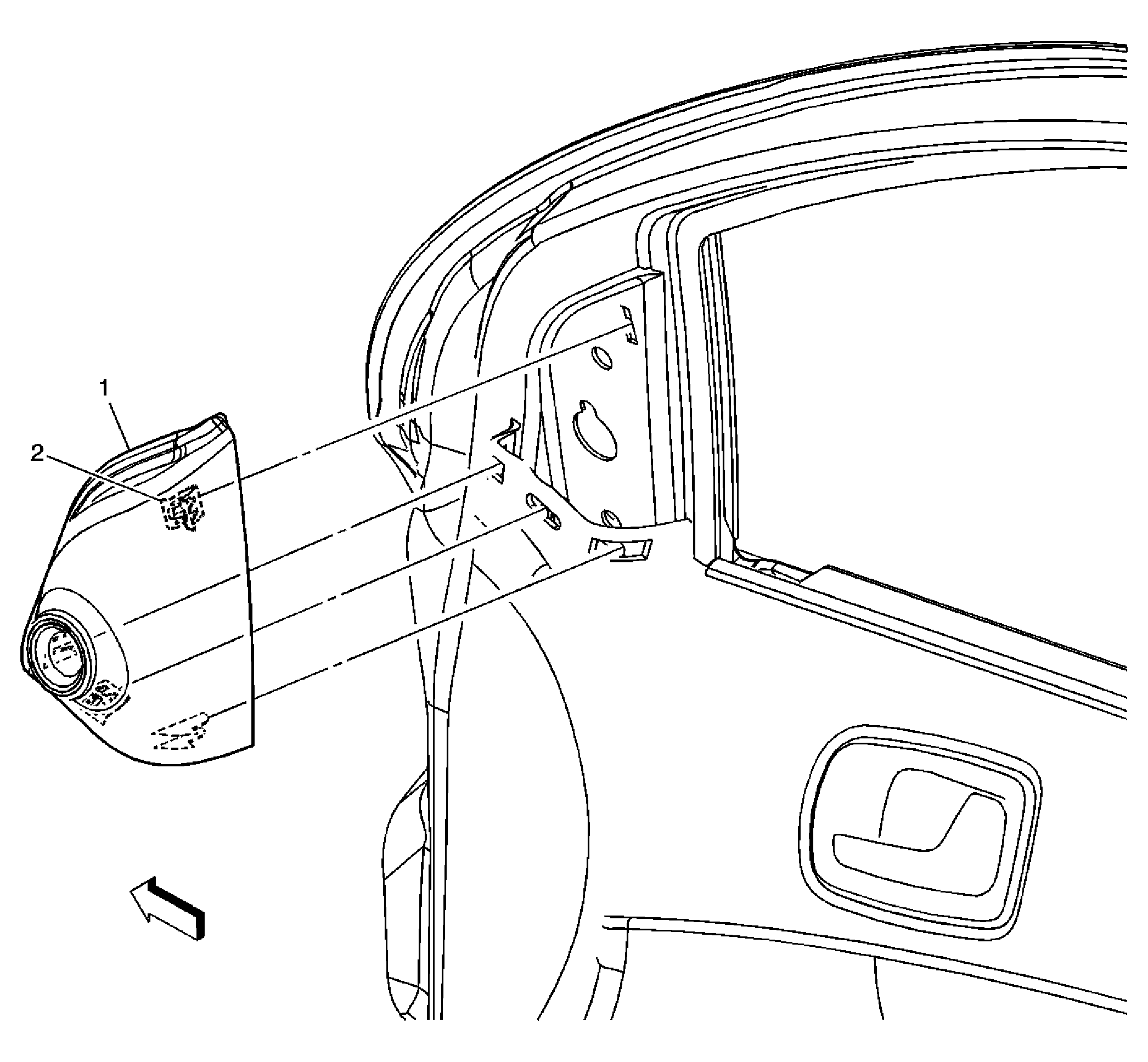

Fig 1: View Of Upper Extension Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Panel Assembly, Upper Front Side Door Tip: Panel is only serviced on vehicles with manual mirrors.
2	Retainer, Upper Front Side Door Panel
