Armrest Pull Cup Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

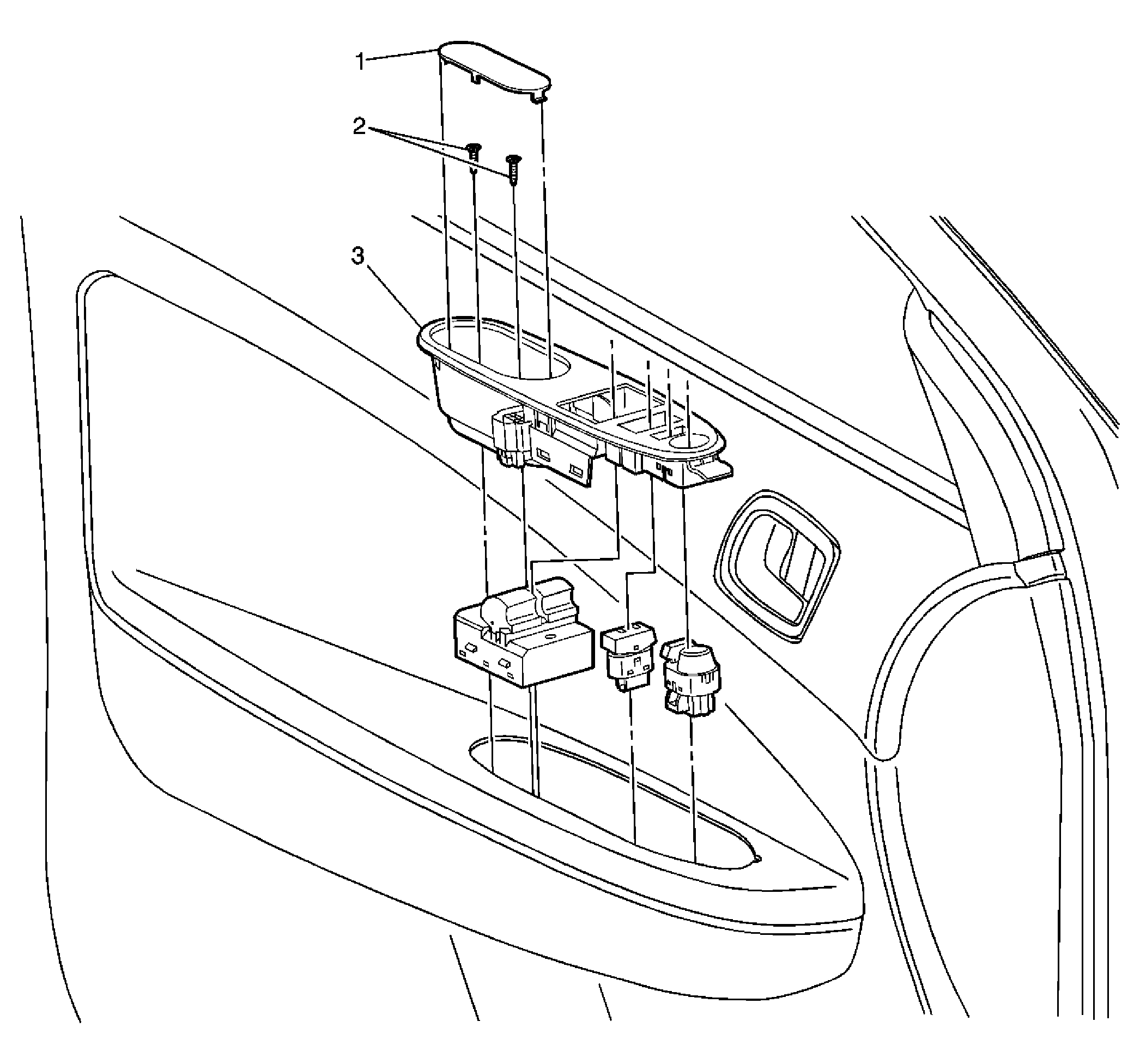

| Callout | Component Name |
|---|---|
| 1 | Door Panel Pull Cup Trim Plate |
| 2 | Door Panel Pull Cup Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 3 | Pull Cup Assembly Tip: Disconnect the electrical connector. |
