Rear Energy Absorber Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

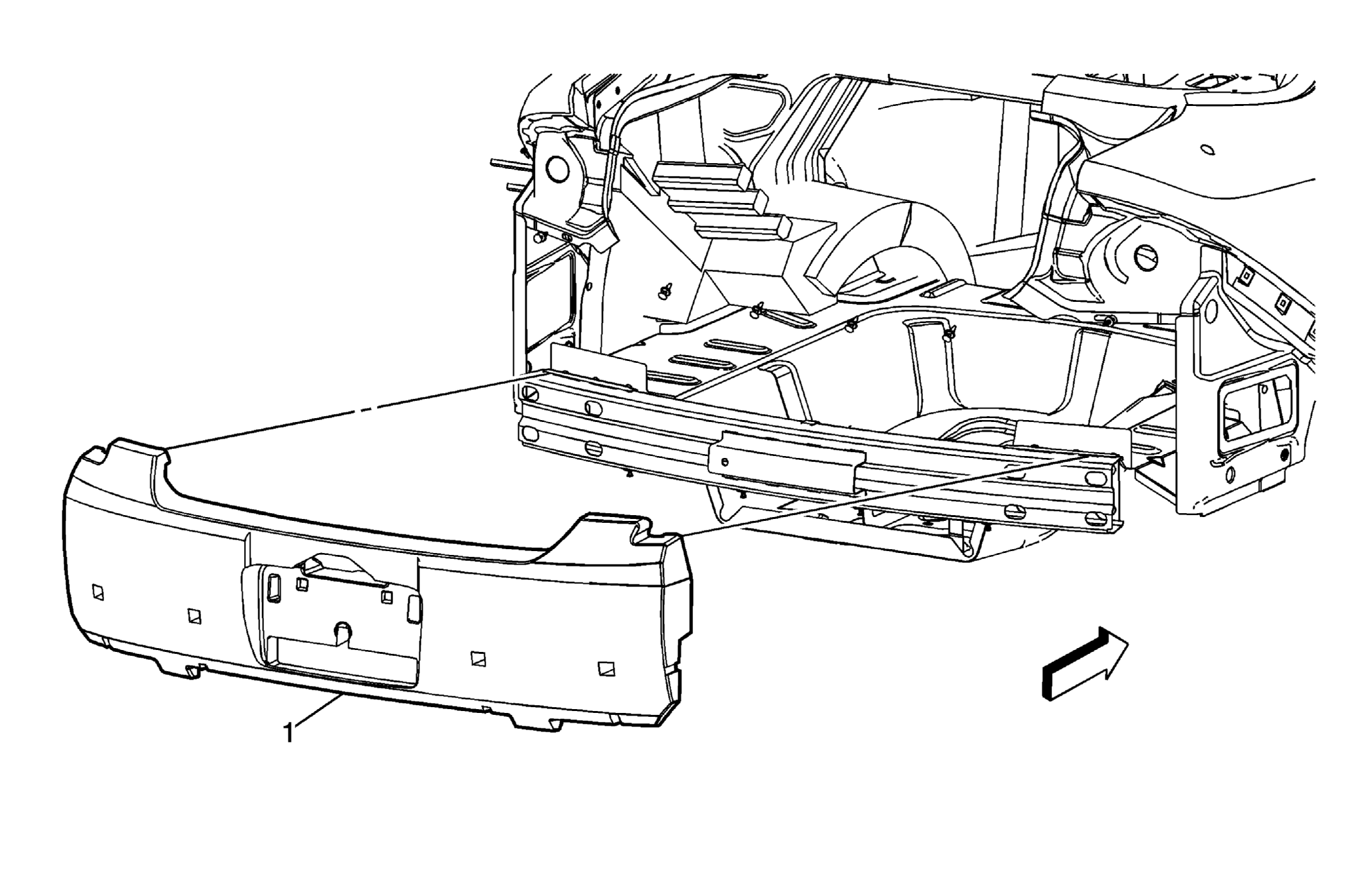

Fig 1: Rear Energy Absorber

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Sedan) or Rear Bumper Fascia Replacement (Coupe) .
1	Rear Bumper Fascia Energy Absorber Tip: Release the absorber tabs to remove the energy absorber from the fascia. Remove the license plate connector retainers from the energy absorber.
