Rear Bumper Impact Bar Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

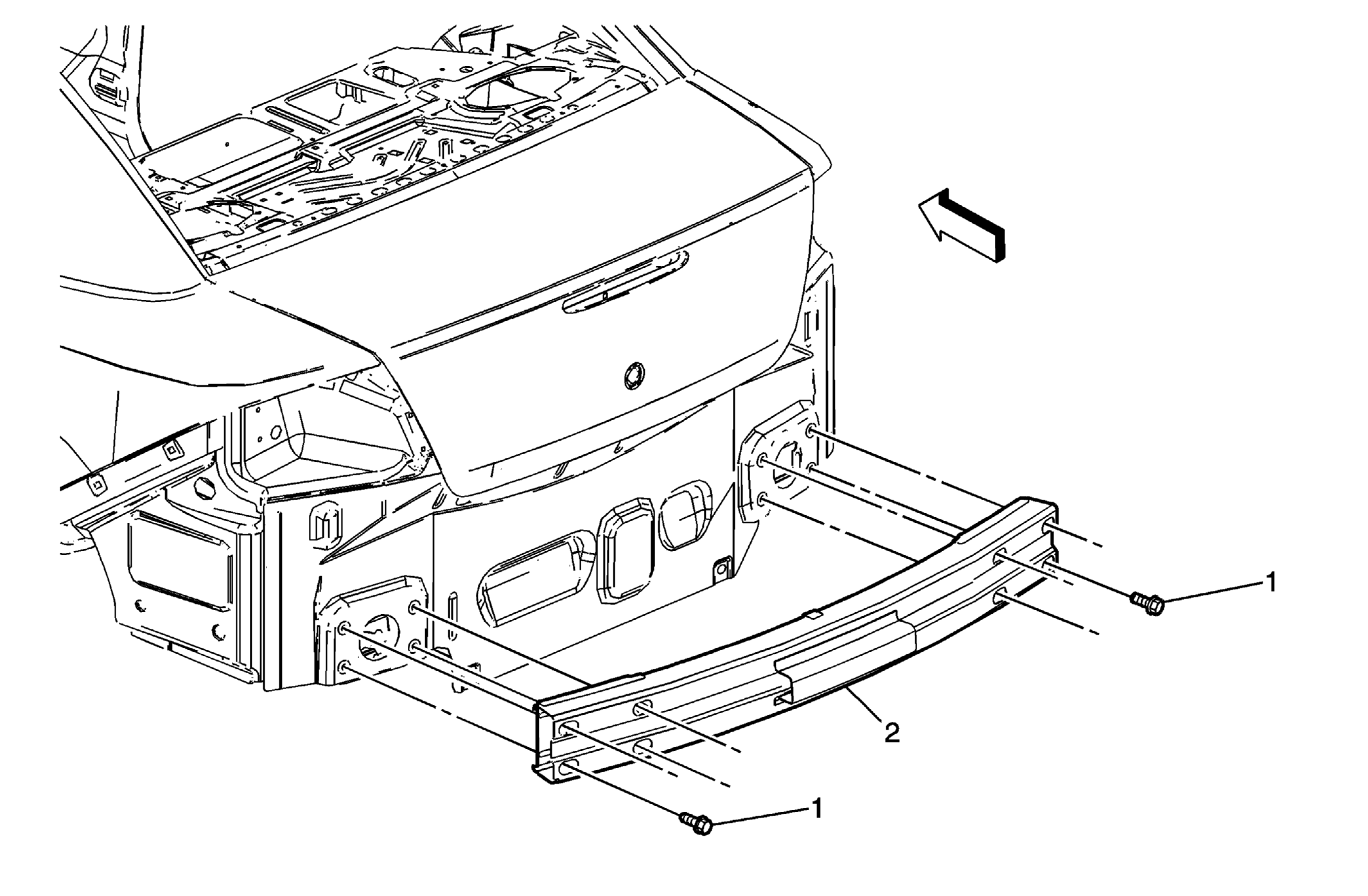

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Sedan) or Rear Bumper Fascia Replacement (Coupe) . |
|
| 1 | Rear Bumper Impact Bar Bolt (Qty: 8)
CAUTION:
Refer to Fastener Caution
. Tip: The energy absorber is attached to the fascia. Tighten: 25 N.m (18 lb ft) |
| 2 | Rear Bumper Impact Bar |
