Driver or Passenger Seat Cushion Heater Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

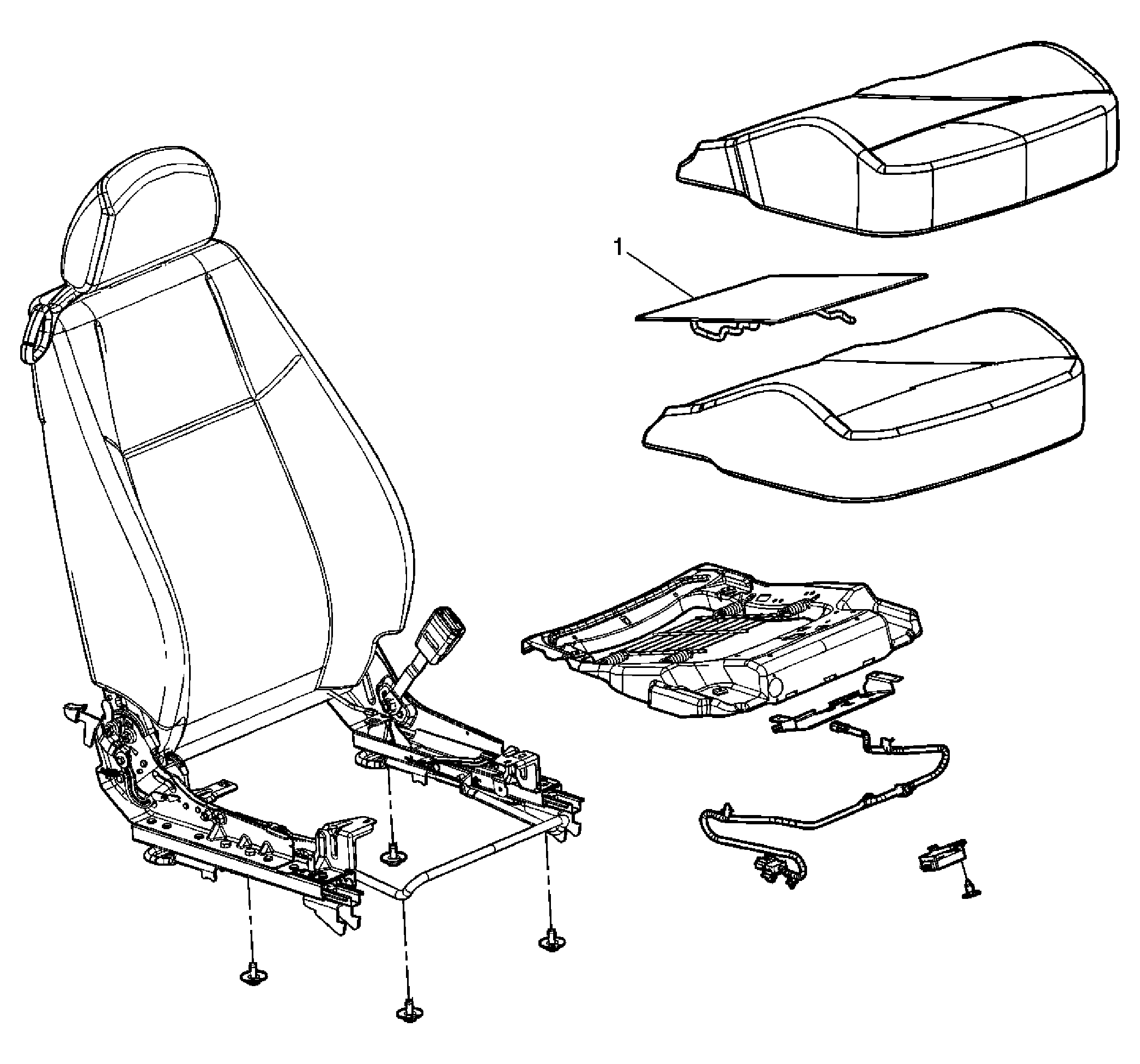

Fig 1: Seat Cushion Heater Element -- Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (UD0) or Front Seat Cushion Cover and Pad Replacement (ADM) .
1	Heater Assembly, Seat Cushion Tip: Disconnect the electrical connectors.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (UD0) or Front Seat Cushion Cover and Pad Replacement (ADM) .

Heater Assembly, Seat Cushion
Tip: Disconnect the electrical connectors.
