Driver or Passenger Seat Back Cushion Heater Replacement

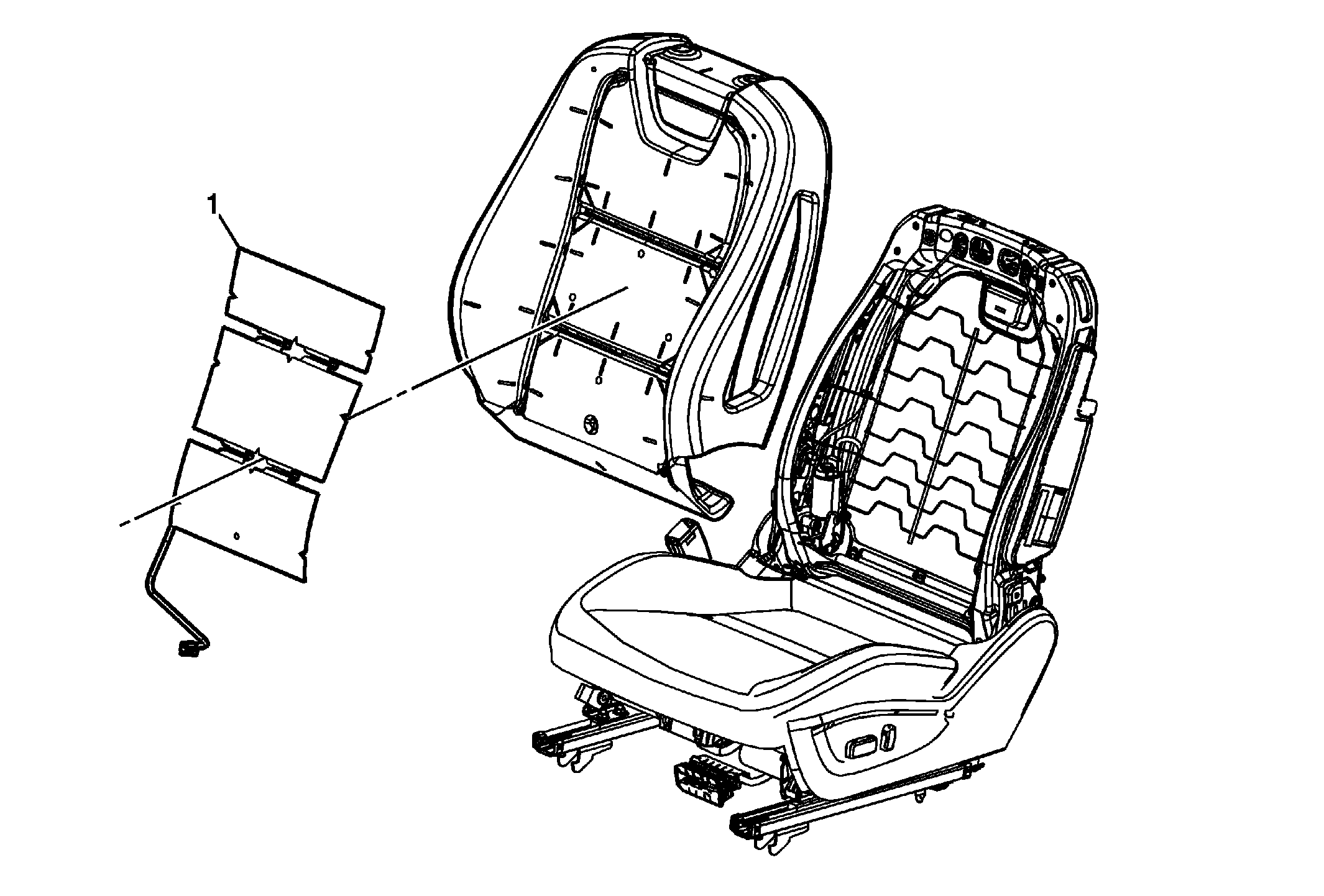

Fig 1: Driver Or Passenger Seat Back Cushion Heater

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Remove the front seat. Refer to Driver or Passenger Seat Replacement . Remove the front seat cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement .
1	Driver or Passenger Seat Back Cushion Heater Procedure Disconnect the electrical connector. Remove the heater element leaving the old adhesive strips intact on the seat cushion. The new seat heater adhesive strips will be placed over the old adhesive strips.

Callout

Component Name

WARNING:

Preliminary Procedure

Driver or Passenger Seat Back Cushion Heater

Procedure

Disconnect the electrical connector.
Remove the heater element leaving the old adhesive strips intact on the seat cushion. The new seat heater adhesive strips will be placed over the old adhesive strips.
