Driver or Passenger Seat Replacement

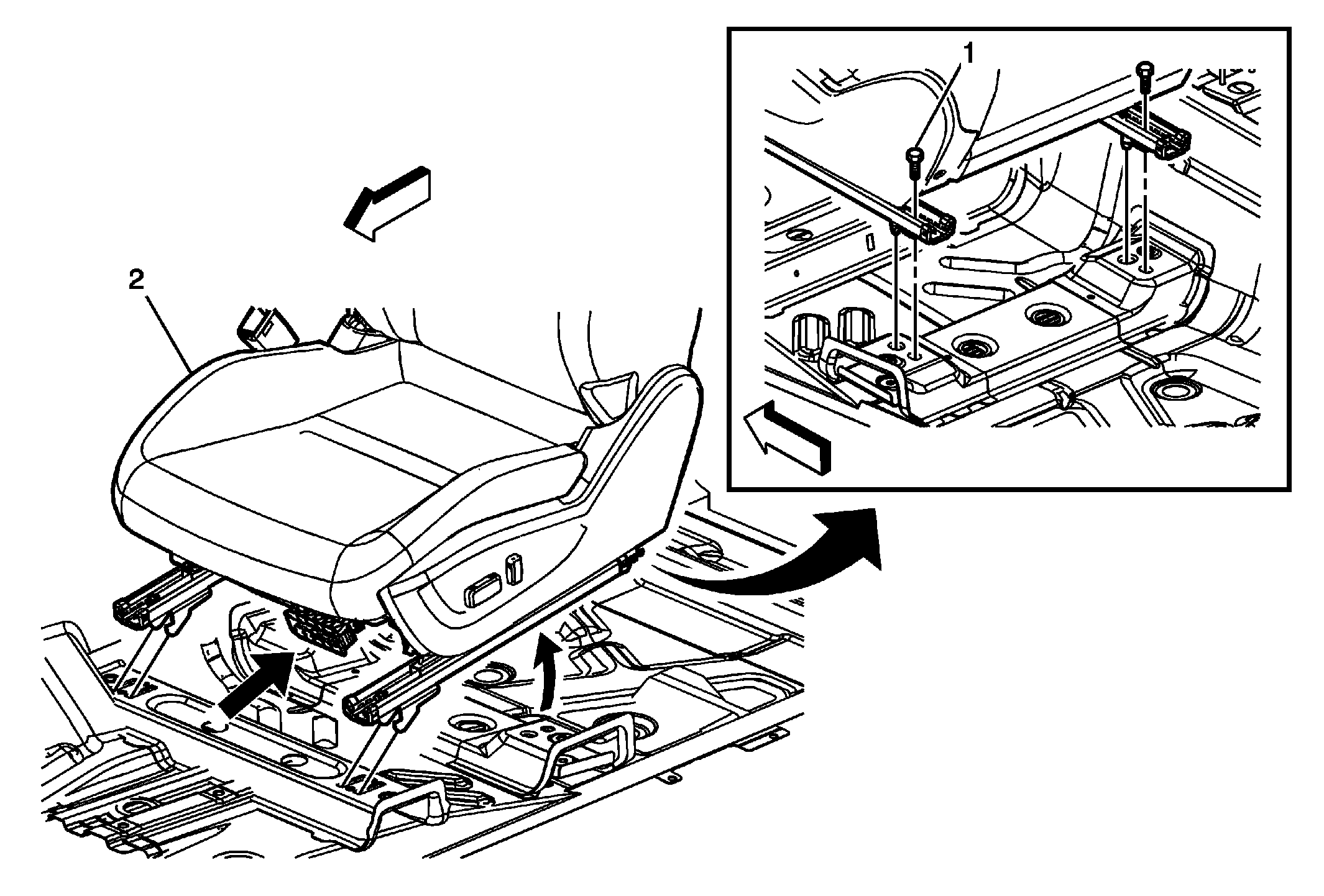

Fig 1: Front Seat And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: To avoid personal injuries, re-zero the passenger presence system whenever you remove or replace the seat cushion or trim. Failure to do so may cause the system to malfunction. Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References for replacement and setup information.
1	Front Seat Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) Procedure Adjust the seat to the full forward position to gain access to the rear bolts.
2	Front Seat Assembly Procedure Disconnect the front seat and pretensioner electrical connector, and passenger presence system connector, if equipped. With the aid of an assistant remove the front seat, by tilting the seat forward, and then lifting and pulling the seat rearwards to disengage the front hooks. Perform the front seat track synchronization procedure before seat installation. Refer to Front Seat Track Synchronization

Callout

Component Name

WARNING:

Refer to SIR Warning .

WARNING:

To avoid personal injuries, re-zero the passenger presence system whenever you remove or replace the seat cushion or trim. Failure to do so may cause the system to malfunction.

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References for replacement and setup information.

Front Seat Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)
Procedure
Adjust the seat to the full forward position to gain access to the rear bolts.

Front Seat Assembly

Procedure

Disconnect the front seat and pretensioner electrical connector, and passenger presence system connector, if equipped.
With the aid of an assistant remove the front seat, by tilting the seat forward, and then lifting and pulling the seat rearwards to disengage the front hooks.
Perform the front seat track synchronization procedure before seat installation. Refer to Front Seat Track Synchronization
