Rear Seat Back Cushion Stowage Latch Actuator Replacement

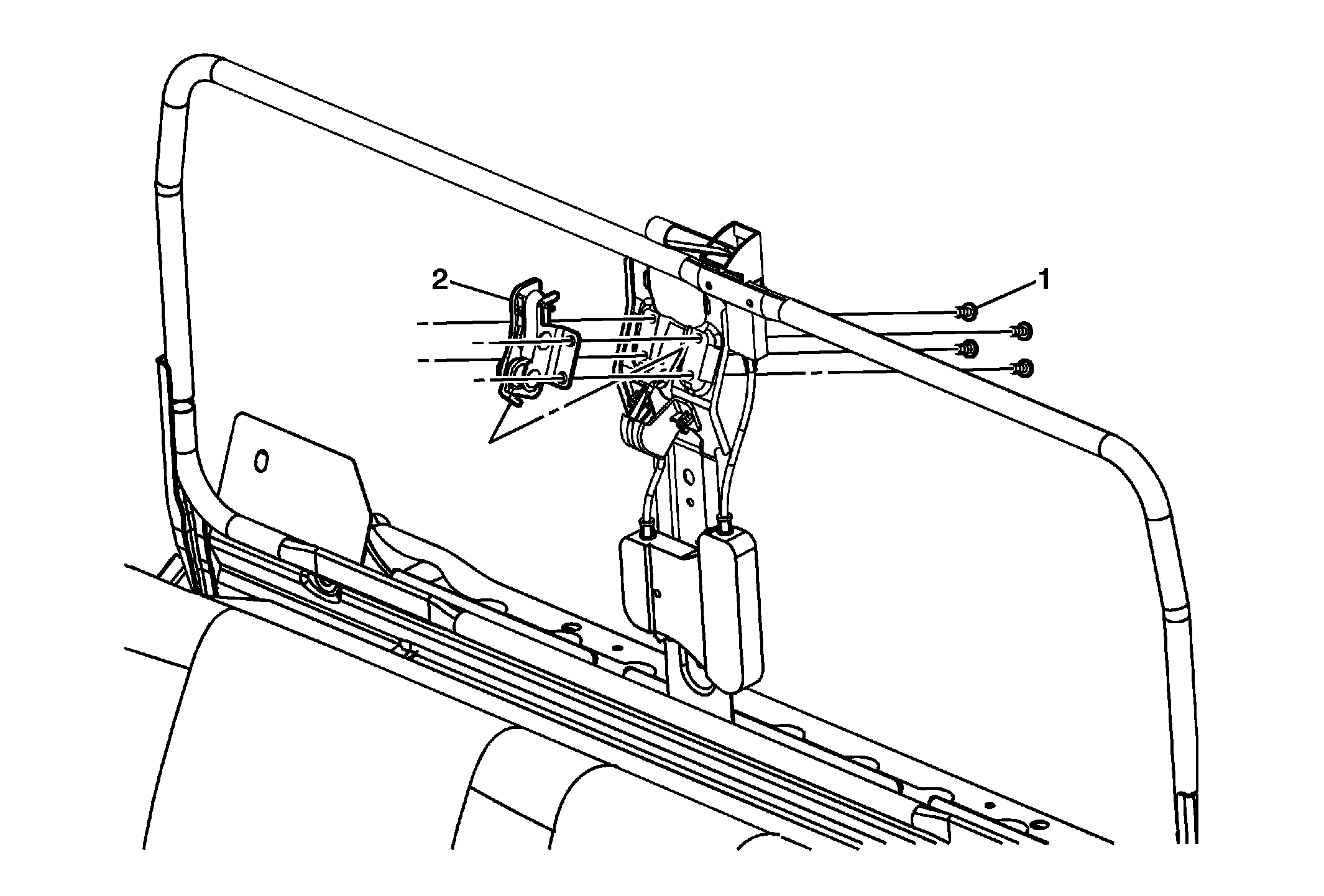

Fig 1: Rear Seat Back Cushion Stowage Latch Actuator And Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat back cushion latch cable. Refer to Rear Seat Back Cushion Latch Cable Replacement . Remove the rear seat back cushion opening panel. Refer to Rear Seat Back Cushion Panel Replacement .
1	Rear Seat Back Cushion Stowage Latch Actuator Retainer (Qty: 4) CAUTION: Refer to Component Fastener Tightening Caution . Tighten 7.5 N.m (66 lb in)
2	Rear Seat Back Cushion Stowage Latch Actuator Assembly Procedure Disconnect the cable from the latch actuator.

Callout

Component Name

Preliminary Procedure

Remove the rear seat back cushion latch cable. Refer to Rear Seat Back Cushion Latch Cable Replacement .
Remove the rear seat back cushion opening panel. Refer to Rear Seat Back Cushion Panel Replacement .

Rear Seat Back Cushion Stowage Latch Actuator Retainer (Qty: 4)

CAUTION:

Tighten
7.5 N.m (66 lb in)

Rear Seat Back Cushion Stowage Latch Actuator Assembly
Procedure
Disconnect the cable from the latch actuator.
